Turbocharger, Cylinders 1 To 4 - Cooling

WARNING: This page is about a different variant/trim than selected.

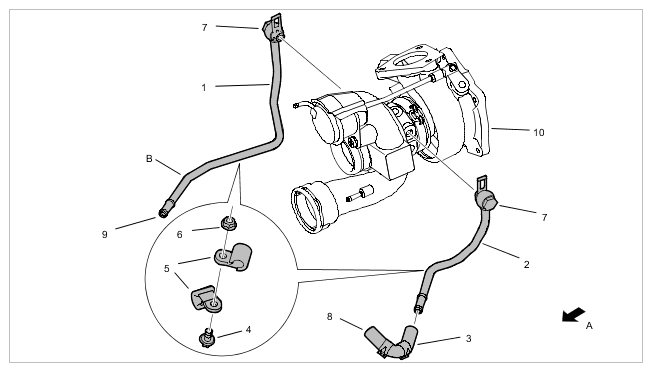

Fig 1: Turbocharger Components Location With Torque Specifcation - Cylinders 1 To 4 (Cooling)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger, cylinders 1 to 4 - cooling

1	Coolant return line for turbocharger, cylinders 1 to 4
2	Coolant supply line for turbocharger, cylinders 1 to 4
3	Coolant supply hose for turbocharger, cylinders 1 to 4
4	Screw, M6 x 16 > Tightening torque 10 (7.5 ftlb.) Nm
5	Clamp
6	Hexagon nut, M6 > Tightening torque 8.5 (6 ftlb.) Nm
7	Banjo bolt, M12 x 1.25; coolant supply line to turbocharger > Tightening torque 30 (22 ftlb.) Nm ; coolant return line to turbocharger > Tightening torque 30 (22 ftlb.) Nm
8	Connection for coolant supply hose for turbocharger, cylinders 1 to 4
9	Connection for coolant return hose for turbocharger, cylinders 1 to 4
A	Direction of travel
