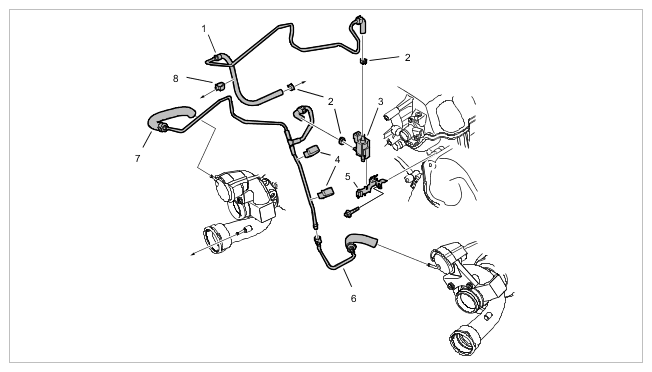

Boost pressure and wastegate
| 1 |
Pressure line, boost pressure line |
| 2 |
Hose clamp |
| 3 |
Cycle valve |
| 4 |
Combination holder |
| 5 |
Holder to chain housing cover > Initial tightening 4 (3 ftlb.) Nm
and > Final tightening 90° |
| 6 |
Control line |
| 7 |
Control line |
| 8 |
Hose holder |
