Fuel Supply
WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS - FUEL SUPPLY
| Location |
Description |
Type |
Basic value |
Tolerance |

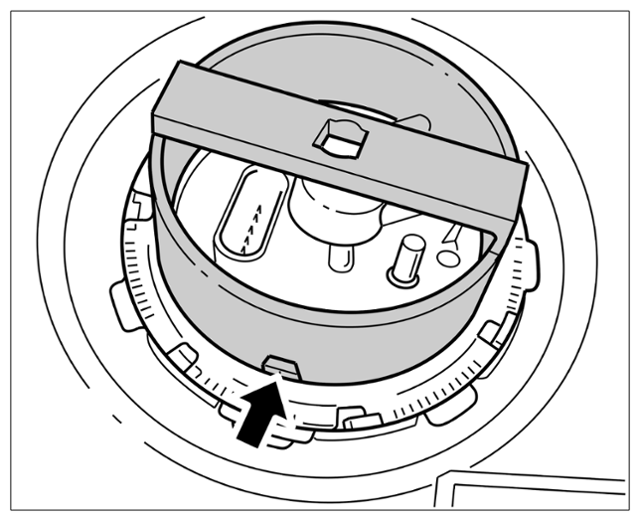

| Sheetmetal ring on connection unit |
|
Tightening torque |
145 (107 ftlb.) Nm |
+/- 5 (3.5 ftlb.) Nm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cover |

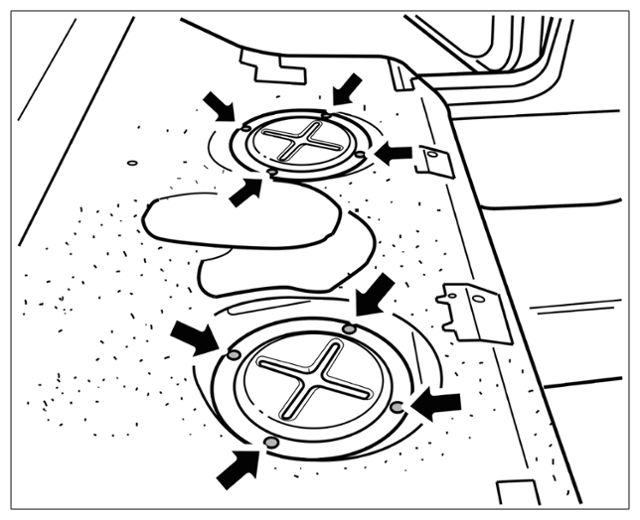

| Fastening nuts for cover plate |
|
Tightening torque |
10 Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening nuts for cap |
