Accelerator Pedal

WARNING: This page is about a different variant/trim than selected.

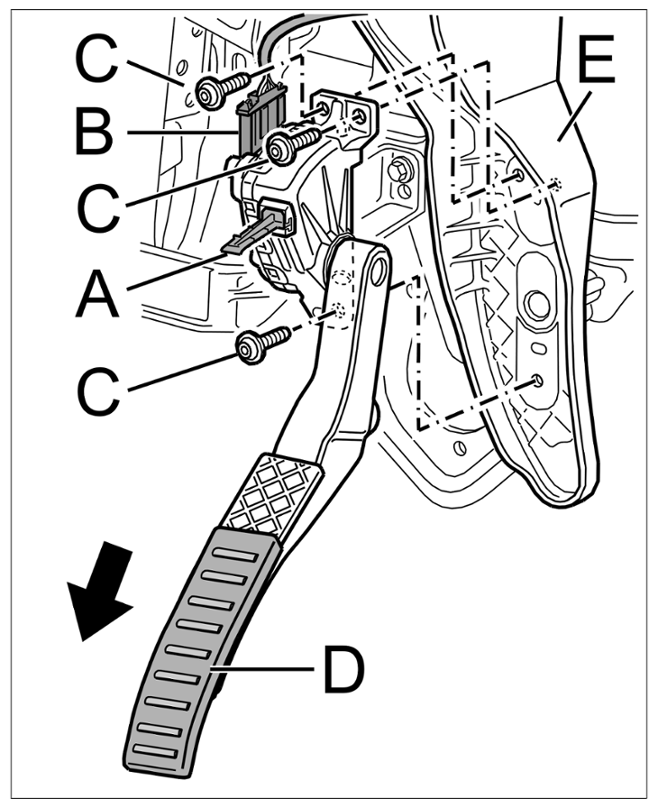

G16309939Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Accelerator pedal

C > Tightening torque 10 (7.5 ftlb.) Nm +/- 1 (0.5 ftlb.) Nm
