Battery Trickle Charging
WARNING: This page is about a different variant/trim than selected.
Workshop equipment Battery chargers.
Information
- When working or carrying out tests on the vehicle or when the vehicle is in the workshop, a battery charger with a current rating of at least 40 A must be connected.
- As soon as the vehicle is unlocked, e.g. the vehicle is in the workshop or salesroom, it must be trickle-charged using a battery charger.
- Charge voltage: 14.4 volts
NOTE:
Using charging cables/jump leads directly on the vehicle battery.
- Risk of damage to battery sensor
→ Always connect charging cables/jump leads to the external power supply for jump-lead starting.

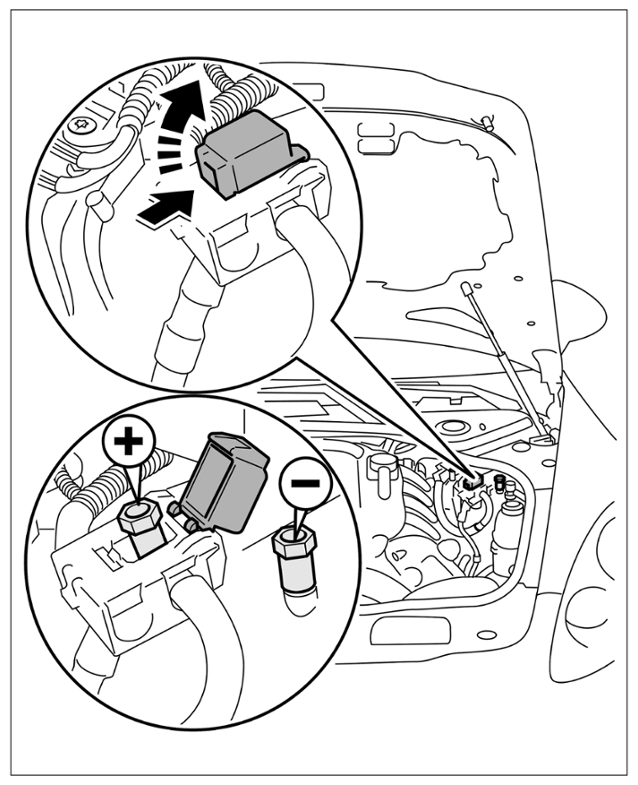

- Open protective cover on positive terminal for jump-lead starting -+-
(-arrow-
).
Protective cover on positive terminal for jump-lead starting
- First, connect the positive cable from the charger to the positive terminal -+- .
- Then connect the negative cable from the charger to the ground point for jump-lead starting - .
- Read and follow the operating instructions for the charger.
- Switch off all electrical loads.
- Switch on the charger.
