Installing Exhaust System

Information

For tightening torques, tightening sequence and assembly overviews for the engine and transmission:

• Group 1:

  > Refer to the appropriate service information

• Group 2:

  > 2X00IN TECHNICAL VALUES

• Group 3:

  > 3X00IN TECHNICAL VALUES

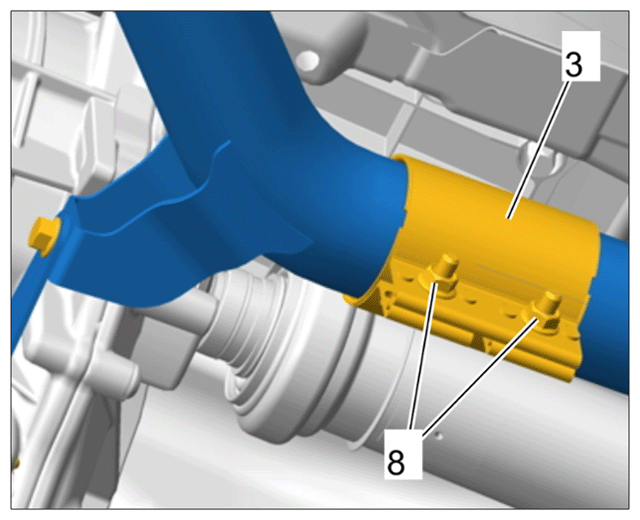

1. Push new exhaust clamps (clamping sleeves) -3-  onto the exhaust pipes. The threaded joint must be pointing downwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting clamps

2. Get another person to help secure the exhaust system.
3. Position the exhaust system under the vehicle. Do not install too tightly.
4. Tighten four fastening screws for the brackets on the rear silencer.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing bracket on rear silencer

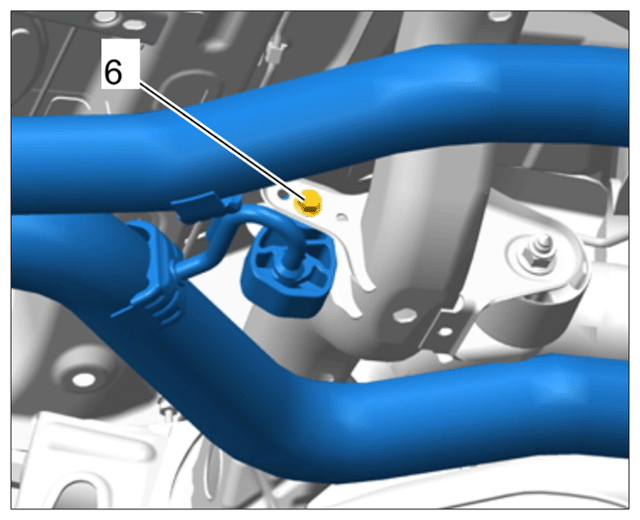

5. Tighten fastening screw on the centre bracket.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening centre bracket

6. The threaded joint on the exhaust clamps must be pointing downwards. Adjust to maximum inclination and ensure the assembly length is the same on both exhaust pipes. > > Adjustment value 10°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of exhaust clamp

1. Gap of approx. 5 mm between the exhaust pipes
2. Length of exhaust clamp
3. Maximum inclination
