Removing Boost Pressure Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Release and unplug boost pressure sensor connector -position arrow-  .

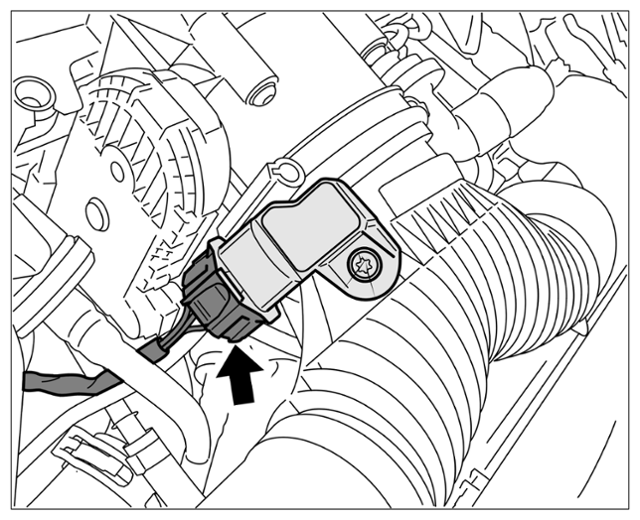

    G16309255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Boost sensor connector

  2. Remove screw for boost pressure sensor and carefully lever out boost pressure sensor.
