Installing Charge Air Cooler

1. Install charge air cooler.

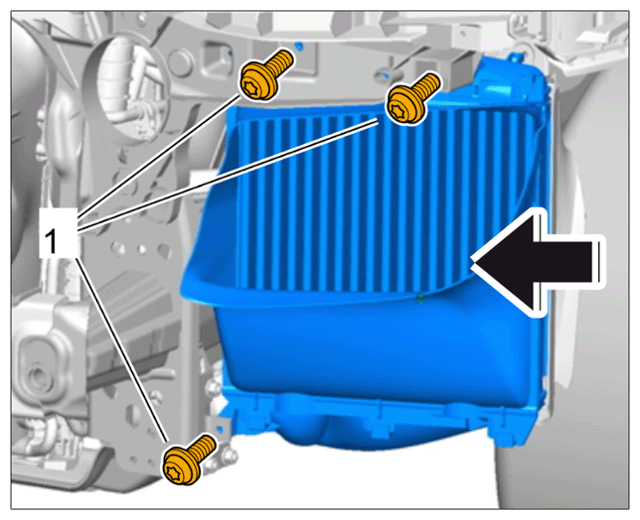

   1. 1.1 Guide charge air cooler and charge air line inwards from the outside -arrow-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Installing charge air cooler

   2. 1.2 Tighten three fastening screws -1-  to > Air cooler tightening torque 7 Nm .
2. Install pressure pipe.

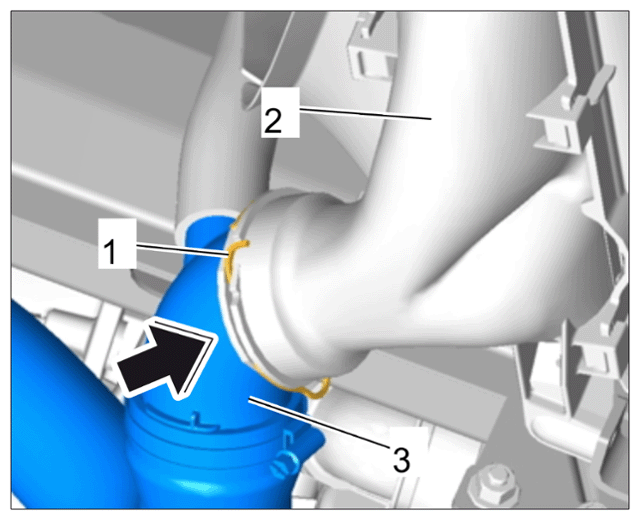

   1. 2.1 Push pressure pipe -3-  into the connection piece on the charge air cooler -2-  until it clicks into place.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Installing pressure pipe

   2. 2.2 Lower the vehicle.
3. Install charge air line.

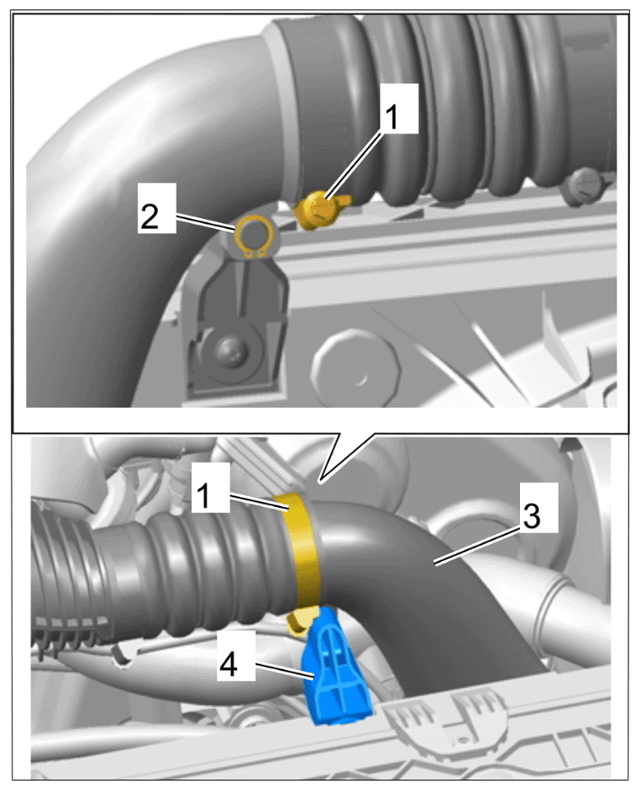

   1. 3.1 Push charge air line -3-  onto the holder -4-  and slide it into the air box for throttle housing (Y-shaped pipe).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing charge air line

   2. 3.2 Fit circlip -2-  for holder.
   3. 3.3 Tighten hose clamp -1-  .
   4. 3.4 Clip vacuum hose into the two clips under the charge air line.

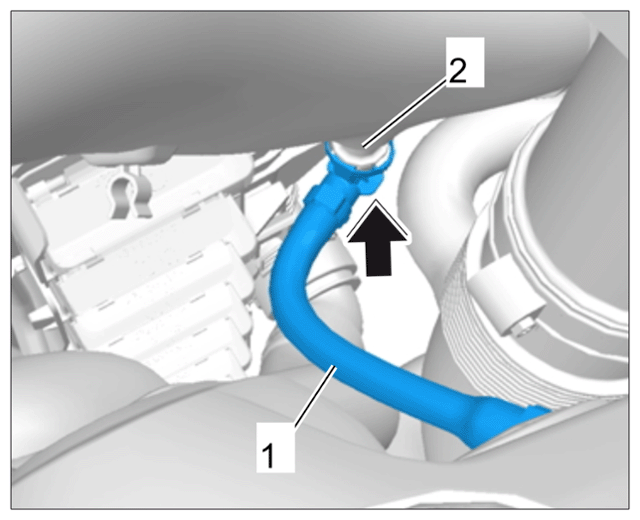

   5. 3.5 Right side only:  Push hose -1-  onto the connection piece for the charge air line -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing hose on charge air line
