Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Disconnect tool and re-connect connections on vehicle side. Absorb and wipe off residual fuel with a cloth.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

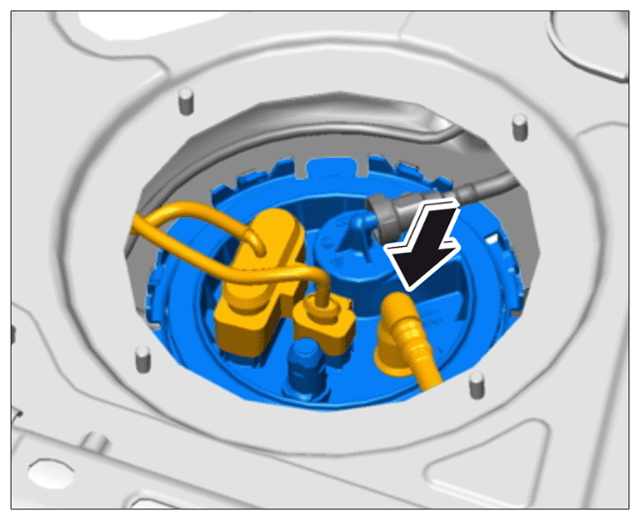

Fuel supply and connection points at right connection unit
Fit the right cap (figure shows both caps). Then tighten the four fastening nuts to > Tightening torque 10 Nm .
Refit loosened carpeting and fix in place with double-sided adhesive tape.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

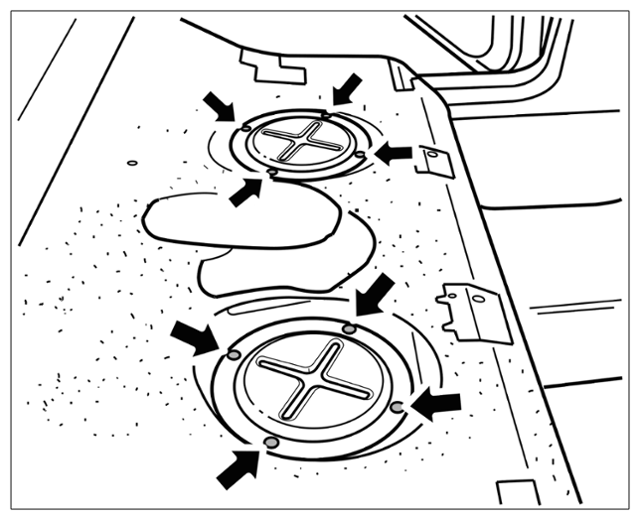

Fastening nuts for cap
Install rear seat.
> Refer to the appropriate service information - section on "Installing"
Close the filler flap.
Air the vehicle with the windows open.
