Removing Leakage Diagnosis Pump (Ldp)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

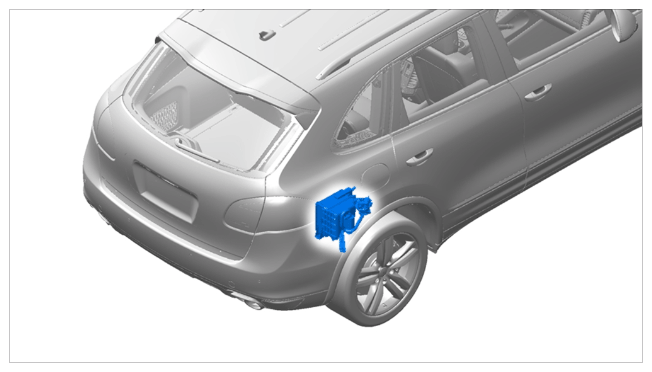

Installation position of leakage diagnosis pump
- Pull air hose -4-
off the leakage diagnosis pump -1-
(-B-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

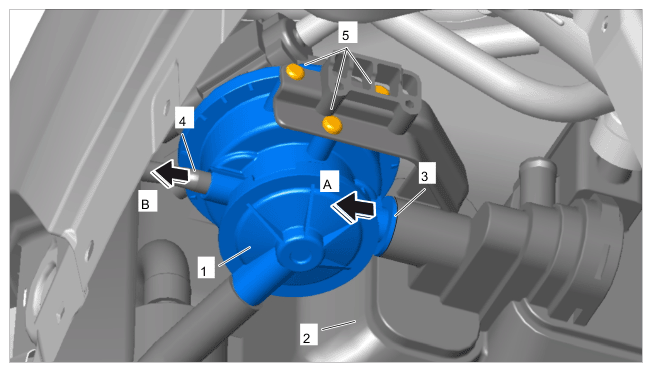

Removing leakage diagnosis pump
| 1 |
Leakage diagnosis pump |
| 2 |
Carbon canister |
| 3 |
Rubber flange |
| 4 |
Air hose |
| 5 |
Fastening screws |
- Unscrew three fastening screws -5-
.
- Pull leakage diagnosis pump -1-
off the carbon canister -2-
(-A-
).
