Component Overview

WARNING: This page is about a different variant/trim than selected.

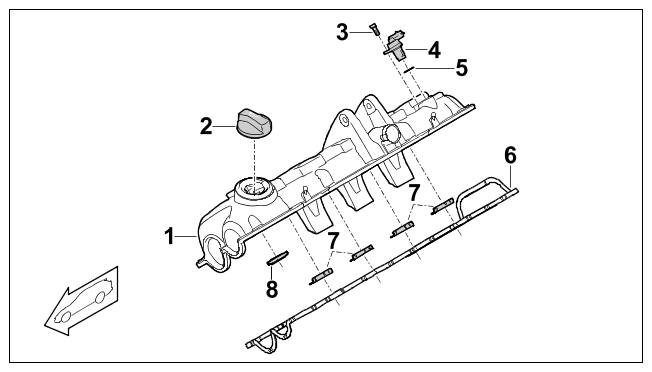

Fig 1: Cylinder-Head Cover Gaskets Components Location - Cylinders 1 To 4

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder-head cover gaskets, cylinders 1 to 4

1	Cylinder head cover for cylinders 1 to 4 (align over bar ignition modules)
2	Oil cap
3	Aluminium screw , M6 x 20; hall sender (phase sensor); always use new aluminum screws
4	Hall sender
5	Sealing ring/replace
6	Cylinder-head cover gasket/replace
7	Cylinder-head cover gasket, inner/replace
8	Seal on hydraulic valve for camshaft control/replace

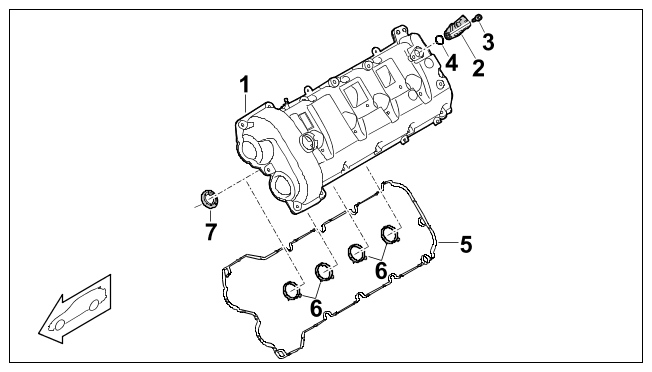

Fig 2: Cylinder-Head Cover Gaskets Components Location - Cylinders 5 To 8

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder-head cover gaskets, cylinders 5 to 8

1	Cylinder head cover for cylinders 5 to 8 (align over bar ignition modules)
2	Hall sender
3	Aluminium screw , M6 x 20; hall sender (phase sensor); always use new aluminum screws
4	Sealing ring/replace
5	Cylinder-head cover gasket/replace
6	Cylinder-head cover gasket, inner/replace
7	Seal on hydraulic valve for camshaft control/replace

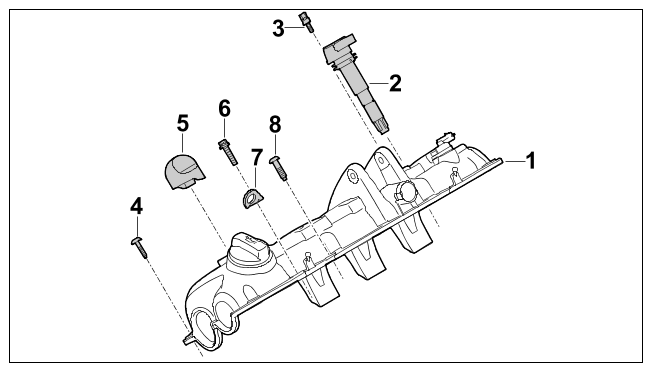

Fig 3: Bar Ignition Modules And Cylinder Head Cover Components Location - Cylinders 1 To 4

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bar ignition modules and cylinder head cover for cylinders 1 to 4

1	Cylinder head cover for cylinder bank 1 to 4 (align over bar ignition modules)
2	Bar ignition module
3	Aluminium screw , M6 x 20; bar ignition module; always use new aluminum screws
4	Aluminium screw , M6 x 30; always use new aluminum screws
5	Cap
6	Steel screw on eyelet
7	Eyelet
8	Aluminium screw , M8 x 35 (on torque support); always use new aluminum screws; steel screw on eyelet!

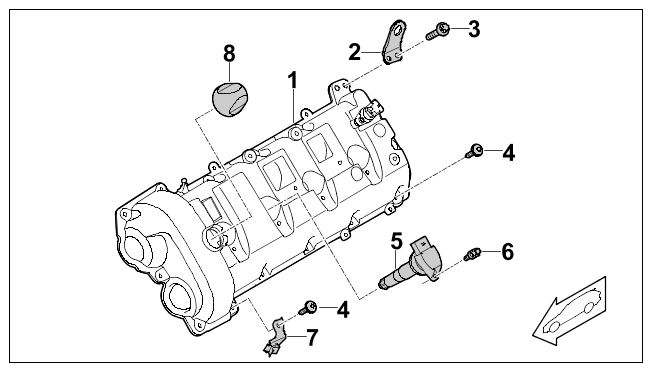

Fig 4: Bar Ignition Modules And Cylinder Head Cover Components Location - Cylinder Bank 5 To 8

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bar ignition modules and cylinder head cover for cylinder bank 5 to 8

1	Cylinder head cover for cylinder bank 5 to 8 (align over bar ignition modules)
2	Eyelet
3	Steel screw on eyelet
4	Aluminium screw , M6 x 30; always use new aluminum screws
5	Bar ignition module
6	Aluminium screw , M6 x 20; bar ignition module; always use new aluminum screws
7	Sheetmetal holder
8	Cap
