Installing Cylinder Head
Information
If cold or excessively low-tempered components are sealed to each other by applying sealant, leaks can occur because of condensed water forming or components distorting. Components must have a uniform temperature of at least 17°C.
Information
- All sealing surfaces must be clean and free of grease!
- It is essential to work carefully!
- Tightening sequences and tightening torques must be observed!
Information
The tightening specifications for the basic engine are stored centrally.
/
or
> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS .
Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.
- Replace cylinder head gasket.

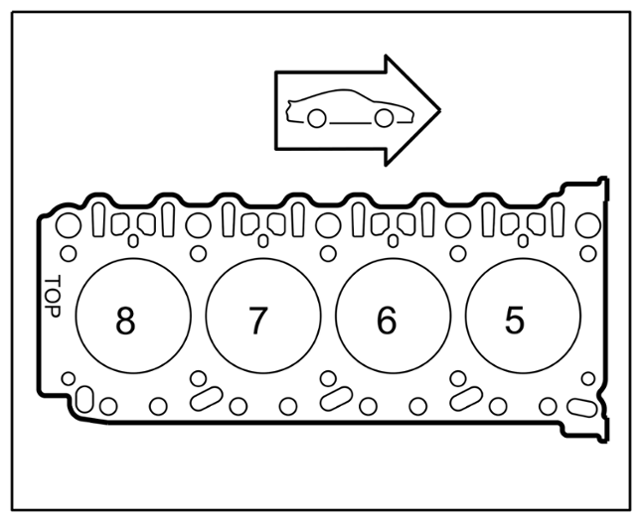

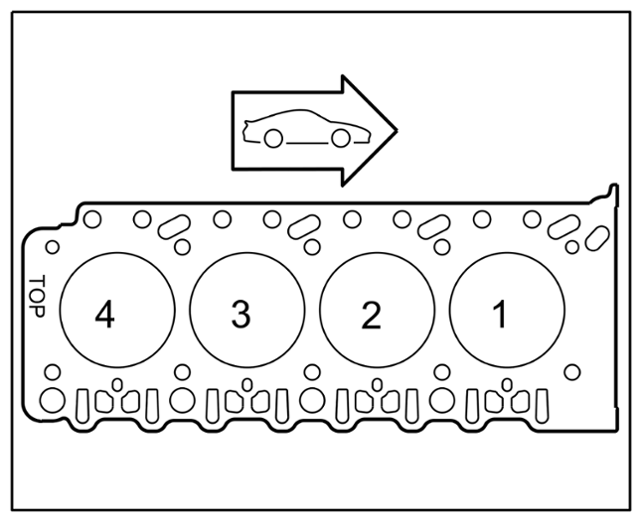

- Place cylinder head gasket correctly, i.e. according to specifications, onto the straight pins on the engine crank housing. This must be done in such a way that the marking 'Top' is legible - see illustration-
.
Cylinder bank 1 -4
Cylinder bank 5 - 8
- Fit cylinder head. Insert cylinder head screws (screws can be re-used). For tightening specifications, see > 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS
Cylinder head 1 to 4

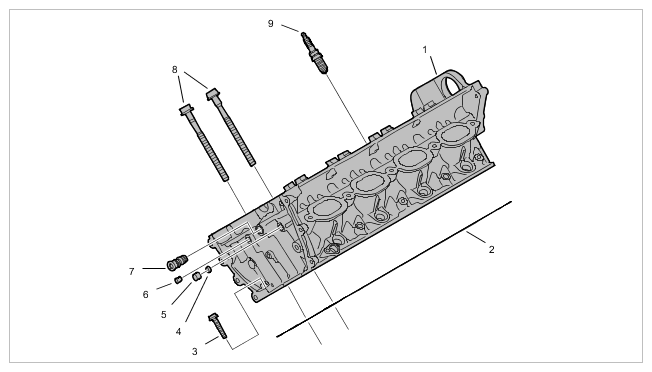

1 Cylinder head 1 to 4 2 Cylinder head gasket 1 to 4 3 M8 screw 4 Lid 5 Stopper 6 Stopper 7 Restrictor for valve lift adjustment 8 Cylinder head screws 9 Spark plug Cylinder head 5 to 8

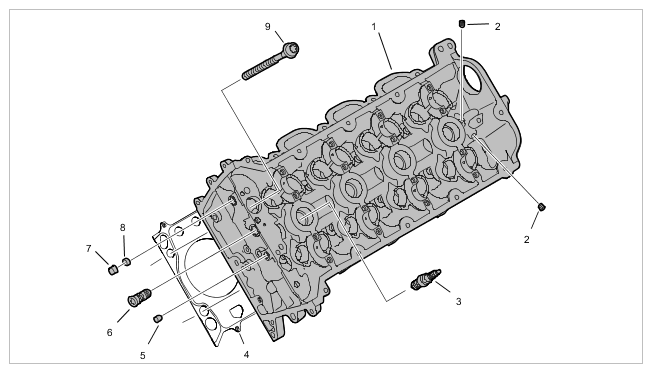

1 Cylinder head 5 to 8 2 Screw plug 3 Spark plug 4 Cylinder head gasket 5 to 8 5 Stopper 6 Restrictor for valve lift adjustment 7 Stopper 8 Lid 9 Cylinder head screws => For tightening specifications, see Tightening sequence for cylinder head - Fit front M8 screw to secure the cylinder head of cylinders 1 to 4 to the crankcase. -3-
Cylinder head 1 to 4
- Fit the mounting saddle at the front -8-
(cylinder bank 1 to 4 shown).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Camshafts, cylinder bank 1 to 4

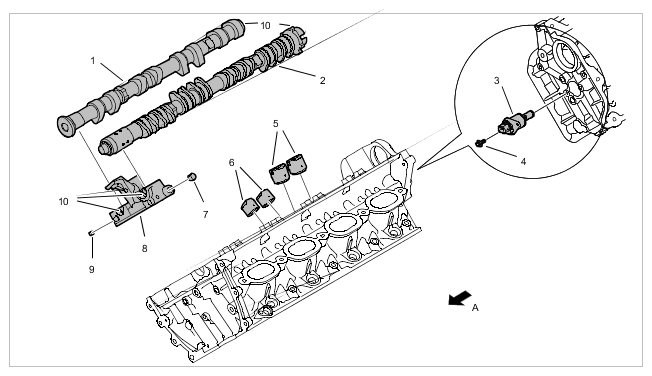

1 Camshaft (outlet) 2 Camshaft (intake) 3 Hydraulic valve for variable valve lift control 4 Screw, M5 x 12 5 Switching tappet (oil with engine oil) 6 Bucket tappet (oil with engine oil) 7 Stopper 8 Mounting saddle 1 to 4 9 Stopper 10 Bearing locations (oil with engine oil) A Direction of travel - Secure wire harness to the engine.

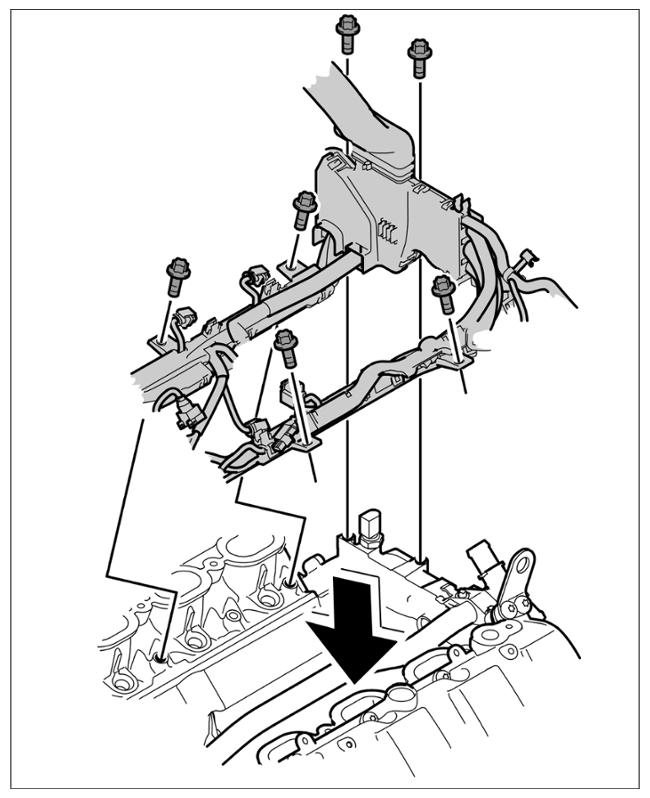

- 6.1 Position and lay engine wire harness on the engine housing -arrow- .
- 6.2 Tighten fastening screws.
Securing engine wire harness on engine housing

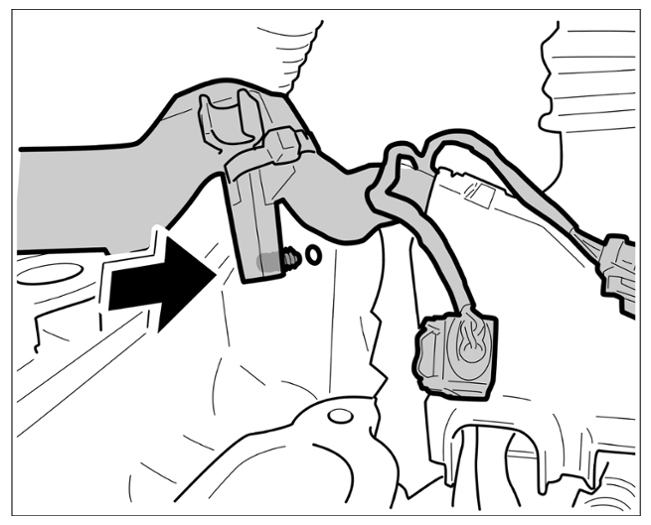

- Clip in engine wire harness at the rear right using the retaining clip -arrow-
.
Clipping in engine wire harness at the rear right
- Clip in engine wire harness close to the vacuum pump.

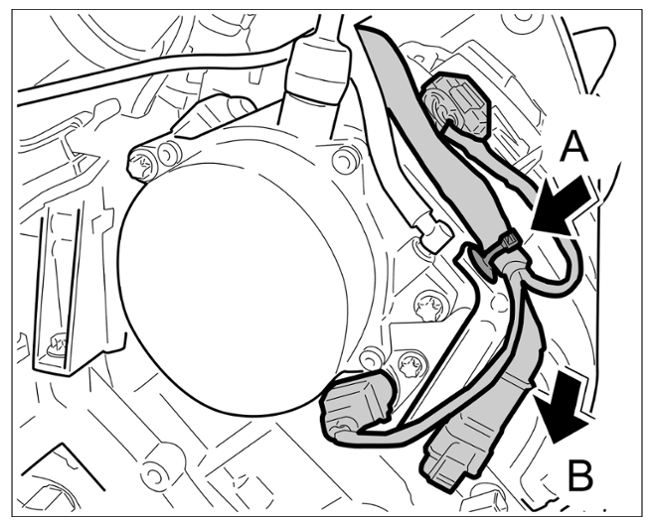

- 8.1 Clip in engine wire harness using the retaining clip -arrow A- .
- 8.2 Slide engine wire harness onto the holder -arrow B- .
Clipping in engine wire harness close to the vacuum pump
- Clip in engine wire harness close to the high-pressure pump.
- 9.1 Screw in and tighten the screw socket -arrow A- .

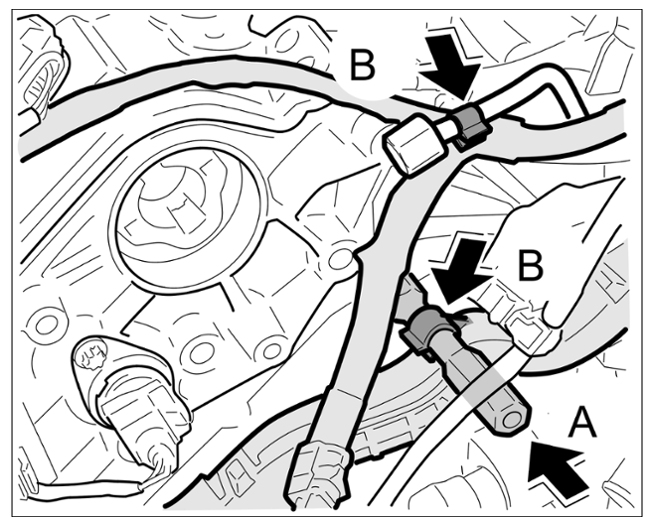

- 9.2 Clip in engine wire harness using the retaining clips -arrows B- .
Clipping in engine wire harness close to the high-pressure pump
- Install vent line.

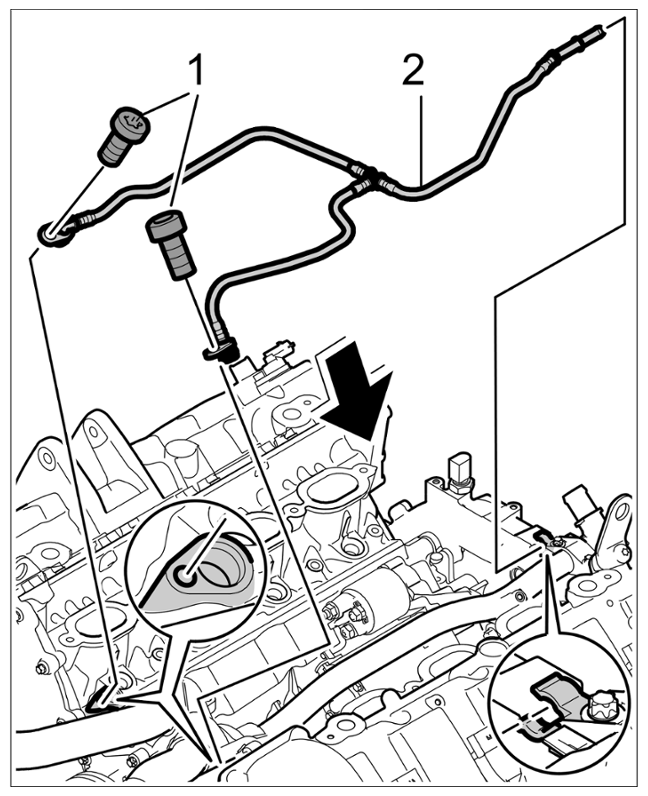

- 10.1 Position vent line -1- and clip it into the cable duct -arrow- .
- 10.2 Fit the fastening screws -2- .
Vent line
