Installing Hydraulic Valve For Valve Lift Switchover

Information

The tightening specifications for the basic engine are stored centrally.

> 1X00IN TECHNICAL VALUES

/

> 2X00IN TECHNICAL VALUES

or

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS .

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

Cylinder bank 1 to 4:

1. Install hydraulic valve -4-  with new sealing ring in correct position.

   Sealing ring must not slip out of place. Fit and tighten screws -3-  .

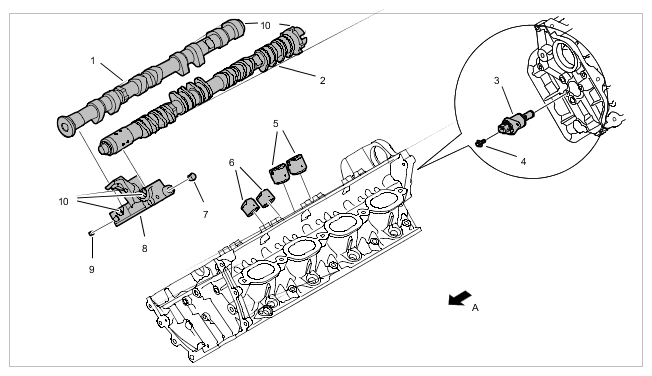

   Fig 1: Camshafts Components Location - Cylinder Bank 1 To 4

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Camshafts, cylinder bank 1 to 4

   1	Camshaft (outlet)
   2	Camshaft (intake)
   3	Hydraulic valve for variable valve lift control
   4	Screw, M5 x 12
   5	Switching tappet (oil with engine oil)
   6	Bucket tappet (oil with engine oil)
   7	Stopper
   8	Mounting saddle 1 to 4
   9	Stopper
   10	Bearing locations (oil with engine oil)
   A	Direction of travel

   Cylinder bank 5 to 8:

2. Install hydraulic valve -4-  with new sealing ring in correct position.

   Sealing ring must not slip out of place. Fit and tighten screws -5-  .

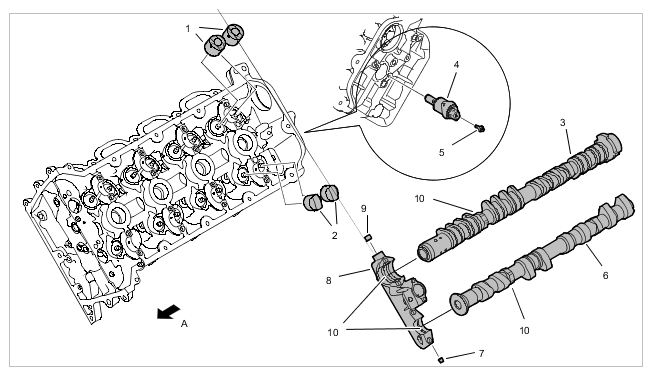

   Fig 2: Camshafts Components Location - Cylinder Bank 5 To 8

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Camshafts, cylinder bank 5 to 8

   1	Switching tappet (oil with engine oil)
   2	Bucket tappet (oil with engine oil)
   3	Camshaft (intake)
   4	Hydraulic valve for variable valve lift control
   5	Screw, M5 x 12
   6	Camshaft (outlet)
   7	Stopper
   8	Mounting saddle, cylinders 5 to 8
   9	Stopper
   10	Bearing surfaces (oil with engine oil)
   A	Direction of travel

3. Connect cable plug for hydraulic valve.
