Removing Solenoid/Hydraulic Valve For Camshaft Adjuster

WARNING: This page is about a different variant/trim than selected.
  1. Unscrew fastening screws for hydraulic valve -4-  .
  2. Carefully pull the hydraulic valve -3-  up and out. To do this, use > 9235 - relay puller. Hold hydraulic valve only at the metal insert.

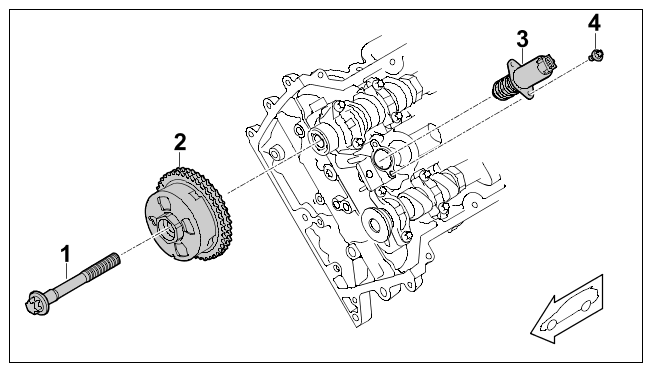

    Fig 1: Camshaft Adjustment Components Location
    G16307364Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camshaft adjustment

    1  Screw, M12 Tighten fully after setting timing  .; Screw must be replaced.
    2  Camshaft adjuster with integrated hexagon for countering
    3  Hydraulic valve for camshaft control
    4  Screw, M5 x 12
  3. Inspect strainer of hydraulic valve and clean with solvent naphtha if necessary. Replace hydraulic valve if heavily soiled.
