Installing Solenoid/Hydraulic Valve For Camshaft Adjuster

Information

The tightening specifications for the basic engine are stored centrally.

> 1X00IN TECHNICAL VALUES

/

> 2X00IN TECHNICAL VALUES

or

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS .

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

1. Replace sealing ring on hydraulic valve. Do not insert sealing ring twisted when fitting it.
2. Coat sealing ring lightly with engine oil and insert the hydraulic valve into the cylinder head. Any installation position is possible.
3. Fit and tighten fastening screws.

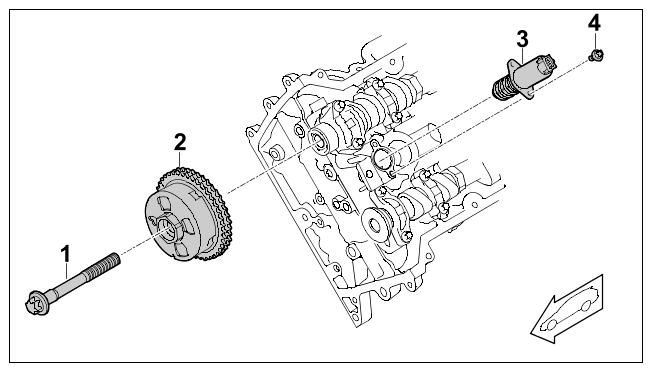

   Fig 1: Camshaft Adjustment Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Camshaft adjustment

   1	Screw, M12 Tighten fully after setting timing  .; Screw must be replaced.
   2	Camshaft adjuster with integrated hexagon for countering
   3	Hydraulic valve for camshaft control
   4	Screw, M5 x 12
