Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Install oil pressure indicator sensor with adapter.

    > Refer to the appropriate service information

  2. Install the chain tensioner.

    > 153619 REMOVE AND INSTALL CHAIN TENSIONER

  3. Install new joint flange with crankshaft sealing ring.

    > Refer to the appropriate service information

  4. Dismantle the staking tool on the camshafts of both cylinder banks.
  5. Fit and secure belt pulley with friction washer.

    > Refer to the appropriate service information.

  6. Check the timing V6 Biturbo  .

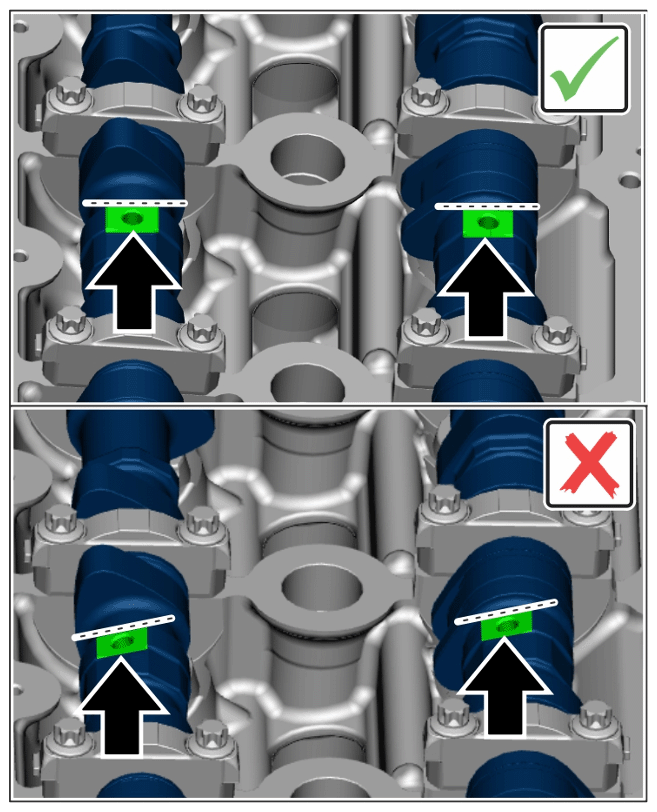

    G16307346Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    TDC position of camshafts

    1. 6.1 Turn the engine two turns clockwise to TDC of cylinder 1  and lock the belt pulley using > 9595/1 - locating pins.
    2. 6.2 Check the position of the camshafts -Arrows-  , the surfaces for the camshaft adjustment must be horizontal.
      1. 6.2.1 If the control chain is still in the same position as it was during removal, remove > 9595/1 - locating pins and continue with Step  9.
      2. 6.2.2 Only set the timing if the control chain has skipped.

        > WM, 150516 TIMING FOR CAMSHAFTS

  7. Check the timing V8  .

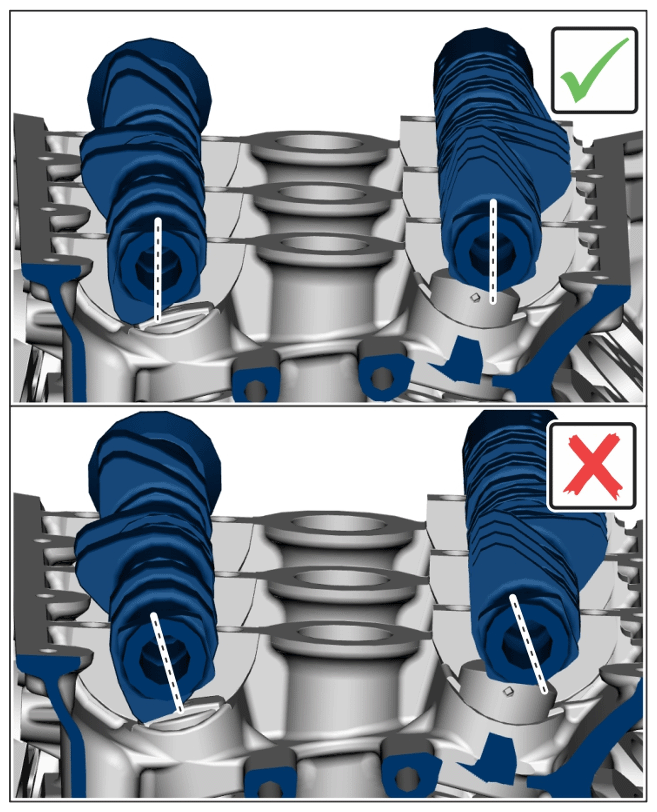

    G16307347Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    TDC position of camshafts

    1. 7.1 Turn the engine two turns clockwise to TDC of cylinder 1  and lock the belt pulley using > 9595/1 - locating pins.
    2. 7.2 Check camshaft adjustment.
      1. 7.2.1 If the control chain is still in the same position as it was during removal, remove > 9595/1 - locating pins and continue with Step  7.
      2. 7.2.2 Only set the timing if the control chain has skipped.

        > WM, 150516 TIMING FOR CAMSHAFTS

  8. Install alternator.

    > 272219 REMOVING AND INSTALLING THE GENERATOR

  9. Install turbocharger suction and pressure hose on cylinder bank 1.
  10. Install both cylinder head covers.

    > 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER

  11. Install coolant pump belt pulley.
  12. Install the drive belt.

    > 137819 REMOVE AND INSTALL DRIVE BELT

  13. Fasten the coolant pump belt pulley.

    > Tightening torque 23 (17 ftlb.) Nm

  14. Install the hat for the throttle body complete with both molded hoses.

    > WM, 243519 REMOVING AND INSTALLING THE THROTTLE-HOUSING COVER

    > Refer to the appropriate service information

  15. Assemble the lock support panel and bumper complete with all radiators.

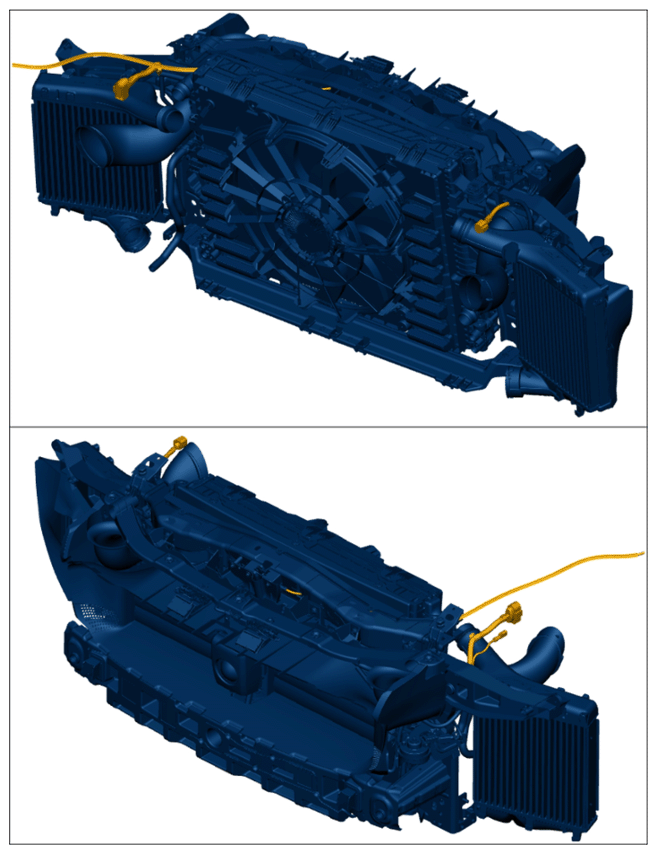

    G16307348Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Radiator assembly with lock support panel and bumper

    1. 15.1 Attach the complete cooler package with a helper.
    2. 15.2 Tighten screw securing -1-  ATF lines -3-  to thermostat -4-  .

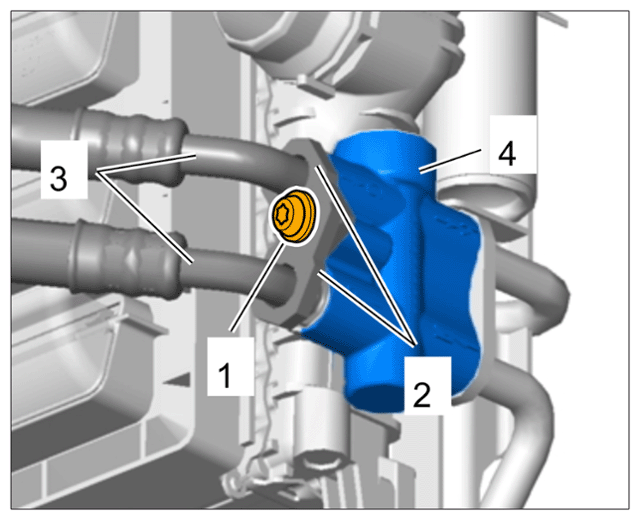

      G16307349Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      ATF lines at the thermostat

    3. 15.3 Fasten the refrigerant line screws to the condenser.

      Use new O-rings.

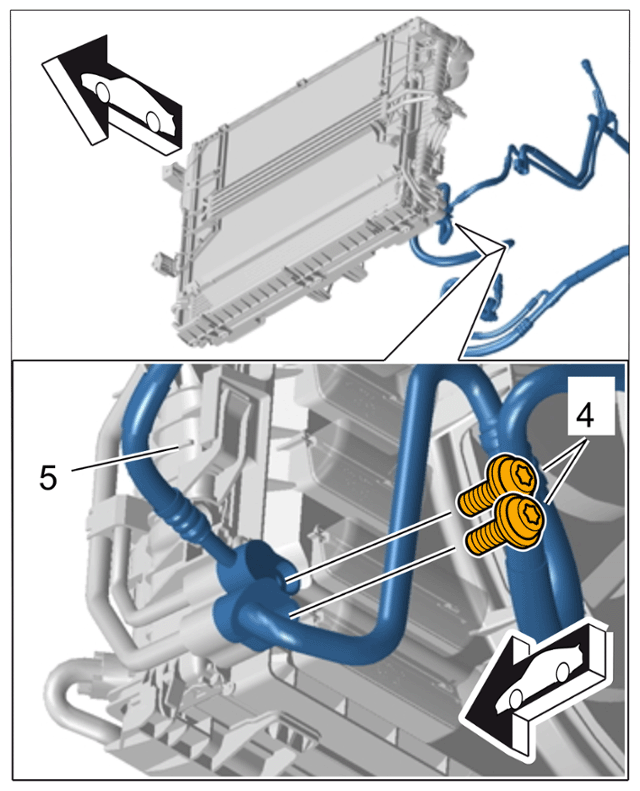

      G16307350Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws air conditioning lines on the condenser

      For details, see:

      > WM 875019 REMOVING AND INSTALLING CONDENSER (CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))

    4. 15.4 Secure hydraulic lines to the power-steering radiator in the left longitudinal member area.

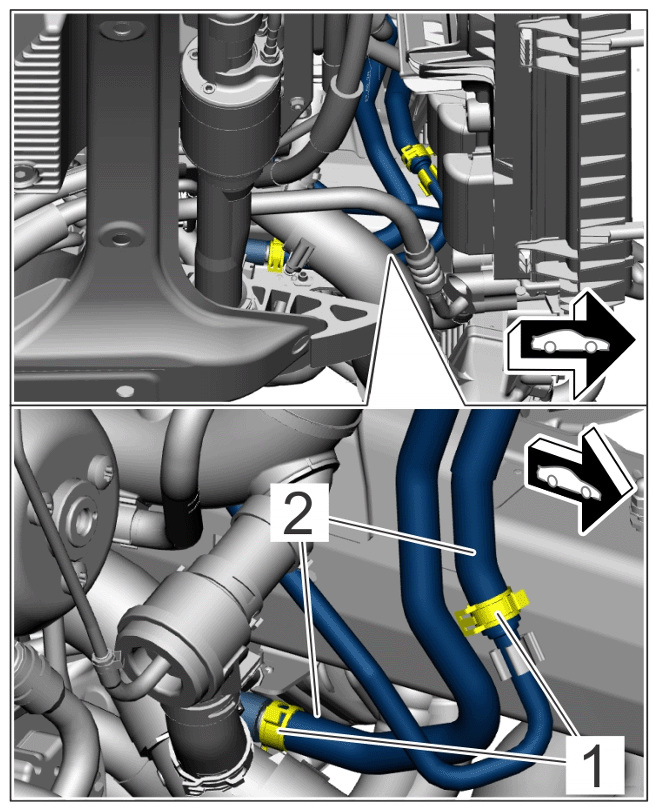

      G16307351Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Hydraulic lines for power steering

      1. 15.4.1 Push on -2-  hoses and fasten clamps -1-  .
    5. 15.5 Secure electric plug connections.
      1. 15.5.1 Secure the electric plug connection -6-  of the cable harness on the left-hand side.

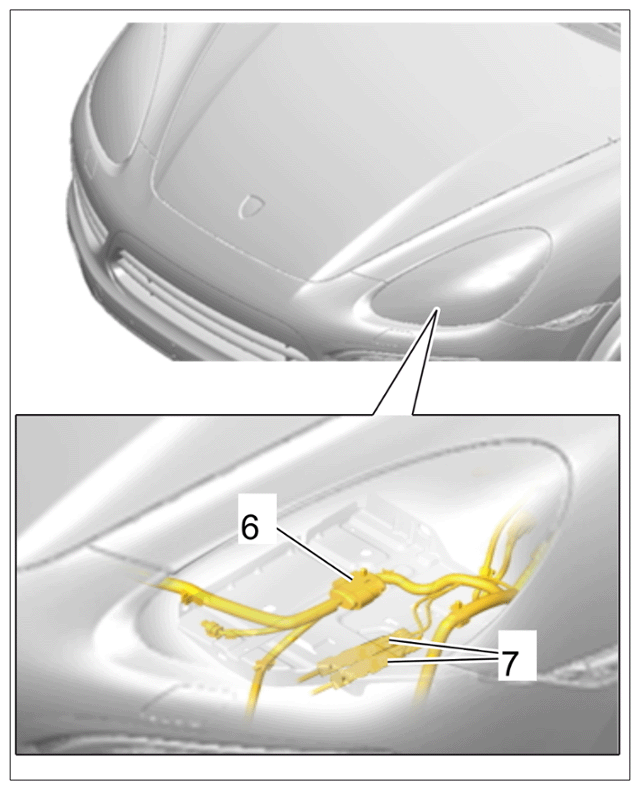

        G16307352Courtesy of PORSCHE CARS NORTH AMERICA, INC.

        Electric plug connection left

    6. 15.6 Secure electric plug connection -8-  on the right side.

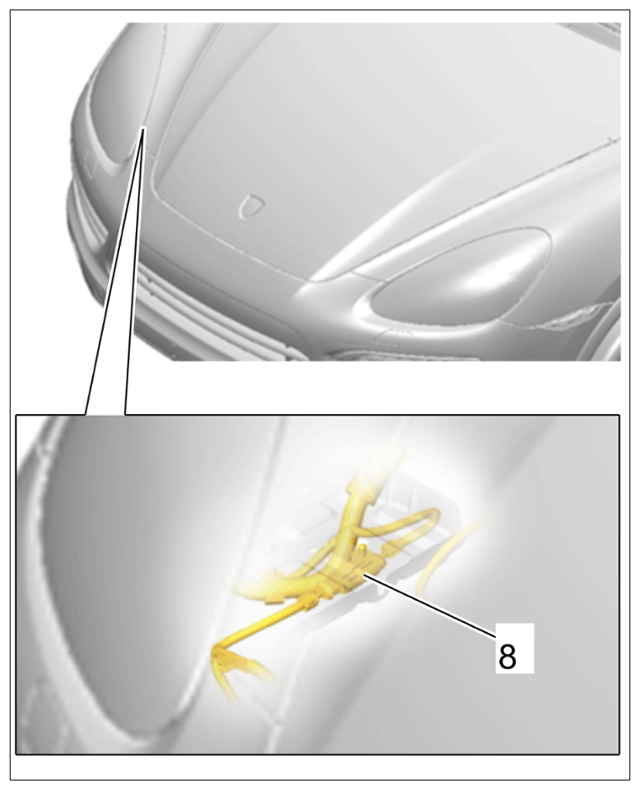

      G16307353Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection right

    7. 15.7 Secure decoupler for flap cable to the upper left longitudinal member.

      For details, see:

      > WM 551019 REMOVING AND INSTALLING RELEASE FOR FRONT LID (CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))

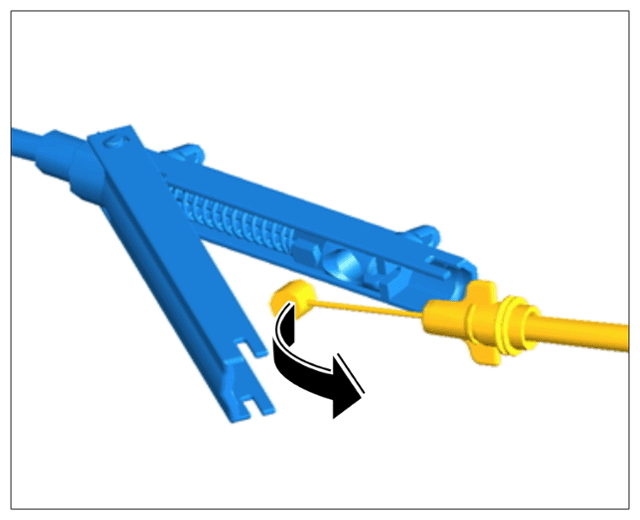

      G16307354Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Removing cable from mounting

    8. 15.8 Tighten screws -5-  for the longitudinal member.

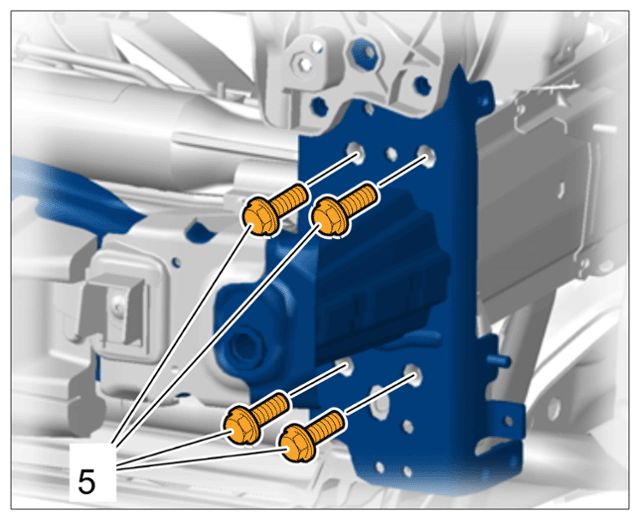

      G16307355Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Detaching bumper

      For details, see:

      > WM 631019 REMOVING AND INSTALLING FRONT BUMPER (CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))

    9. 15.9 Tighten screws -4-  for the bumper.

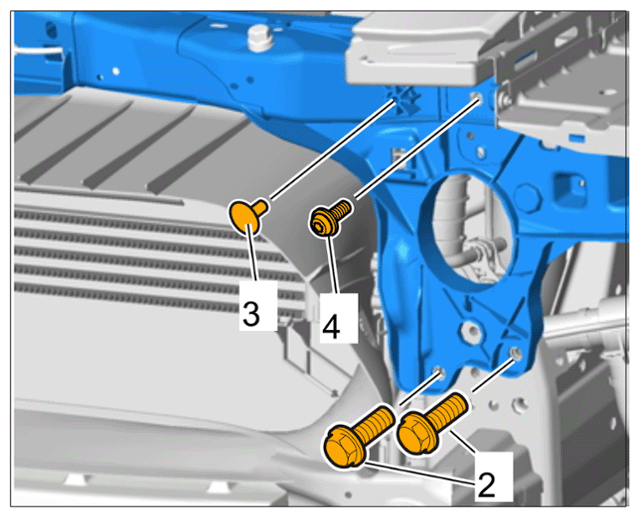

      G16307356Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Loosening lock support panel

      For details, see:

      > WM 503819 REMOVING AND INSTALLING LOCK CARRIER

  16. Install the front bumper.

    > WM 631519 REMOVING AND INSTALLING FRONT APRON (EXCEPT CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))

  17. Install both air cleaner housings.

    > 242519 REMOVE AND INSTALL AIR CLEANER HOUSING

  18. Add refrigerant.

    > WM 870317 DRAINING AND FILLING REFRIGERANT (CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))

  19. Top up coolant.

    > 193817 DRAINING AND FILLING COOLANT

  20. Filling engine oil.

    > 170117 DRAINING AND FILLING ENGINE OIL

  21. Fill in hydraulic fluid.

    > 480201 CHECKING HYDRAULIC FLUID (FLUID LEVEL)

    > 430501 CHECKING FLUID LEVEL (PDCC)

  22. Connect the battery.

    > WM 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
