Preparatory Work: Notes

WARNING: This page is about a different variant/trim than selected.

Work Procedure:

  1. Remove air cleaner housing cover.

    For instructions, see:

    > 242455 REPLACING AIR-CLEANER ELEMENT

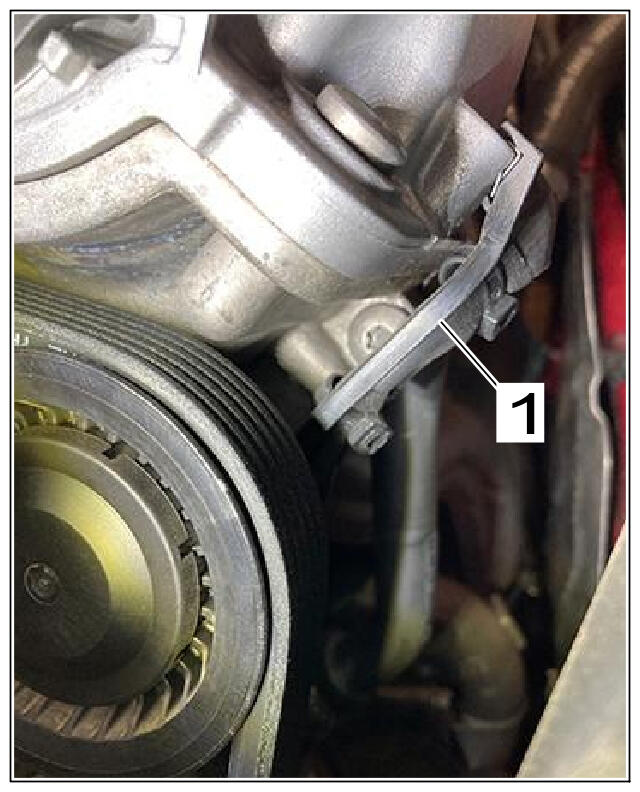

    G16307256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for electric line

  2. Unclip holder -1-  for the electric line on the left cylinder head cover.
