Installing Vibration Damper (Crankshaft Pulley)

Information

The tightening specifications for the basic engine are stored centrally.

> 1X00IN TECHNICAL VALUES

/

> 2X00IN TECHNICAL VALUES

or

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS .

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

Information

The pictures shown in this document may differ from the original.

Information

• A feather key is inserted into the crankshaft. When fitting the vibration damper (crankshaft pulley), make sure that the feather key slots into the groove.
• The feather key must not fall into the engine.
• Vibration damper (crankshaft pulley) and crankshaft stub must be cleaned.

1. Position vibration damper (crankshaft pulley) onto the crankshaft stub. Press the vibration damper slightly towards the engine, while at the same time twisting it until it slips towards the timing-case cover. When doing so, be careful of the feather key > Pulley on crankshaft stub  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

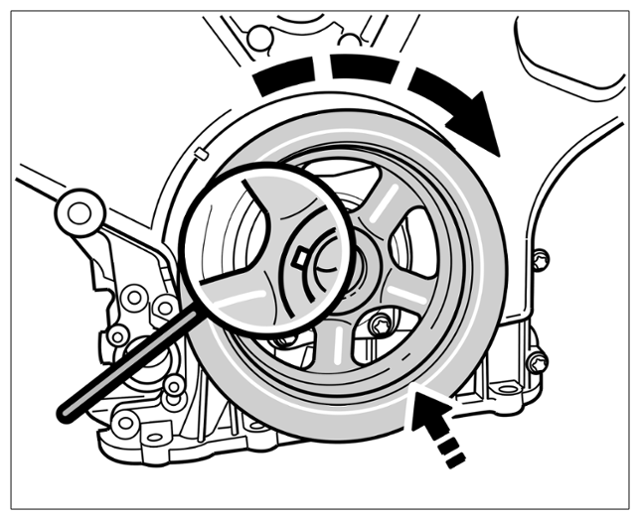

   Pulley on crankshaft stub

2. New  central screw must be fitted hand-tight. > Central screw in crankshaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

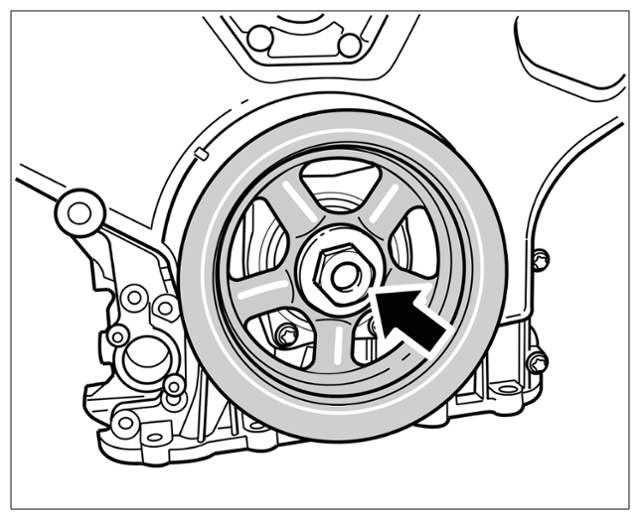

   Central screw in crankshaft

   Information

   Protect the radiator fins using cardboard or a sheetmetal panel to prevent damage.

   Cover wing and peripheral parts to protect them.

3. > 9679/1 - Arm bracket must be inserted into the vibration damper and turned until it locks > Arm bracket in the pulley  . Get another worker to use the arm bracket.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

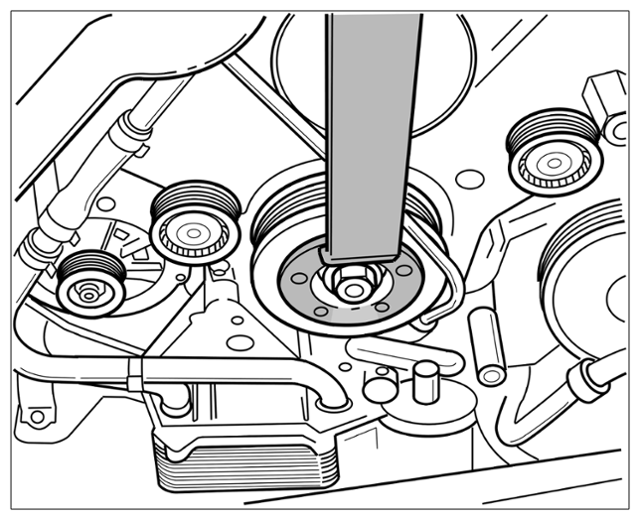

   Arm bracket in the pulley

4. Using a torque wrench and a suitable socket (width across flats 27), tighten the central screw > Large torque wrench at central screw  and only  carry out step-by-step torque tightening  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

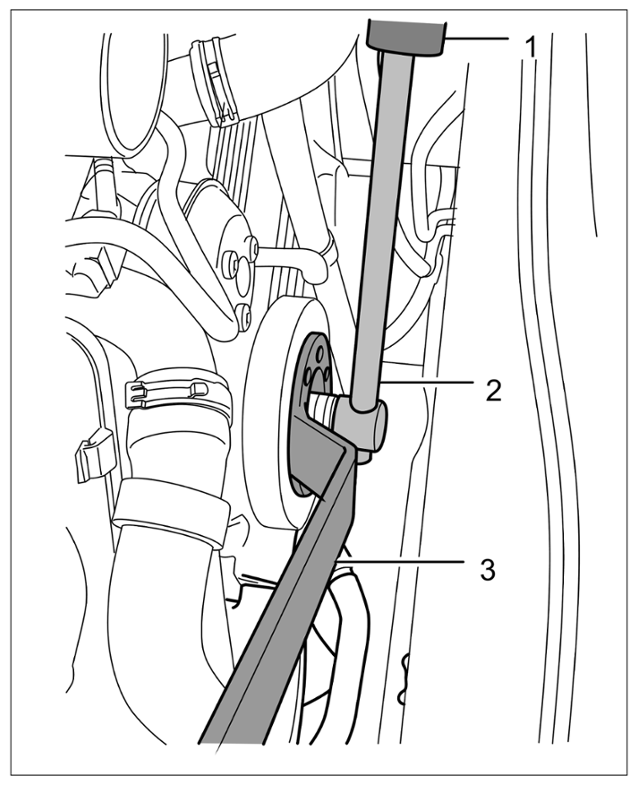

   Large torque wrench at central screw

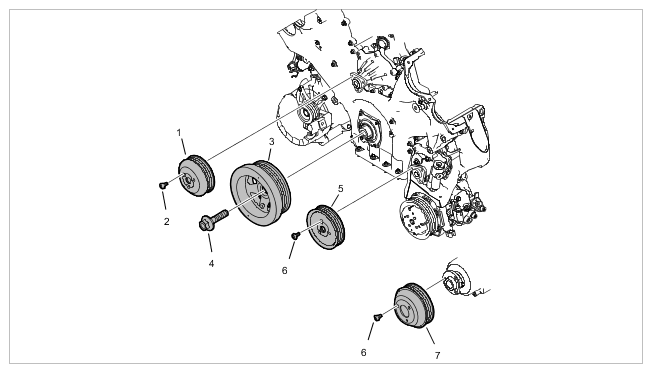

   Fig 1: Pulleys Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pulleys

   1	Water pump pulley
   2	M8 screw
   3	Vibration damper
   4	Screw M18; use new screws
   5	Power-steering pump pulley
   6	M8 screw
   7	Tandem pump pulley

   NOTE: NOTIFICATION
   Incorrect handling of tools

   • Risk of damage to the body

     → Only use tools approved by Porsche.

     → Always ensure that the tool is seated correctly.

     → Protect the body and interior of the vehicle from damage with protective covers.

     → Cover delicate components with cardboard or sheetmetal panels.

5. After tightening to the specified torque, mark the vibration damper and central screw for the torque-angle tightening using a water-resistant marker. To do this, make an initial mark on the vibration damper and central screw at the same position -1 and 2-  . Make a final mark in accordance with the specified torque angle only on the vibration damper -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

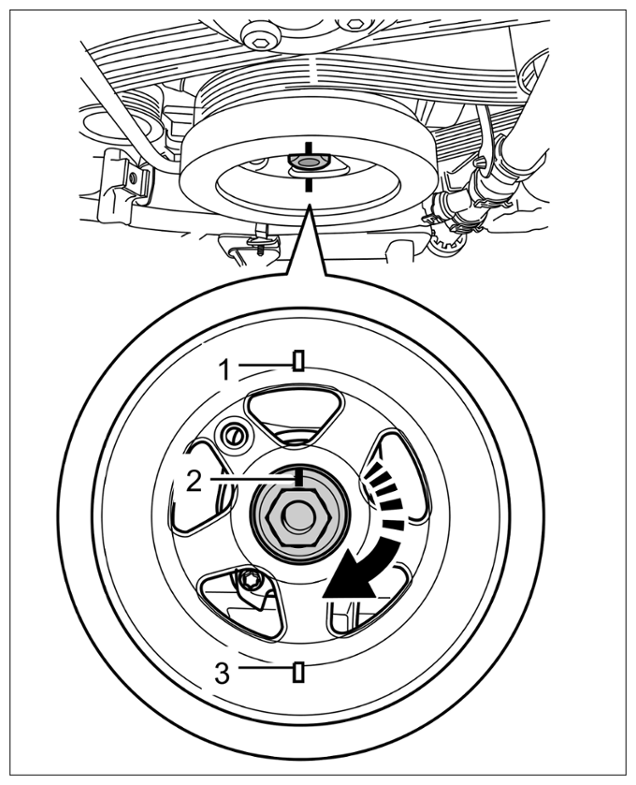

   Markings on vibration damper and central screw (viewed from above)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

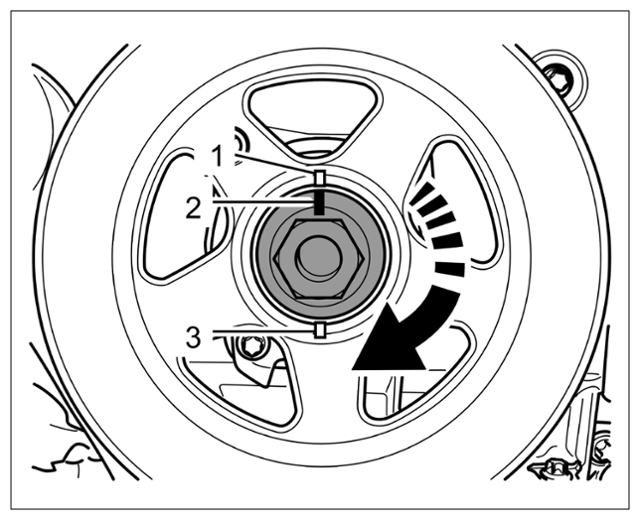

   Markings on vibration damper and central screw (different view)

   Carry out the torque-angle tightening procedure so that the mark on the screw is turned from the initial mark on the vibration damper step-by-step (repositioning the tools repeatedly) to the final mark on the vibration damper -arrow-  . This concludes the torque-angle tightening procedure.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

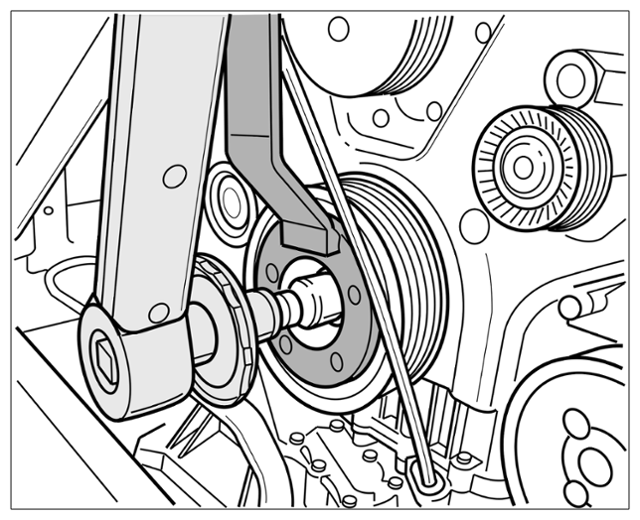

   Use of tool for vibration damper
