Installing Drive Plate For Torque Converter

Information

• Clean the crankshaft flange before fitting the drive plate (remove corrosion/rust).
• Use a metal-polishing pad (e.g. Never Dull) for this.
• Be careful not to remove the bearing classification on the crankshaft flange when cleaning it. Write the bearing classification down on a separate sheet if necessary and place it in the service booklet.

1. Fit drive plate. Fit new screws.
2. Block the drive plate. To do this, position > 9538/1 - toothed segment on a screw hole on the crankcase so that at least one tooth engages. > Flywheel blocked

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

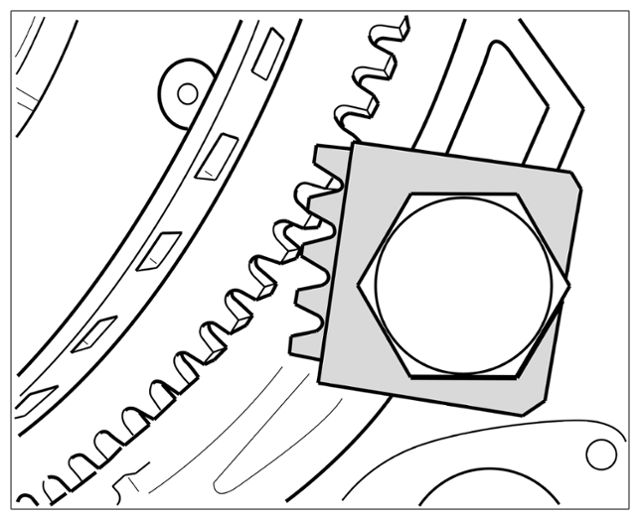

   Flywheel blocked

3. Tighten the new screws in diagonally opposite sequence. >

   >

   >

4. Unscrew the toothed segment.
