Removing Control Unit For Fuel Pump

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and remove remote control before disconnecting or removing electrical load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
Do not touch electric pins and plug contacts.

G16310186

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

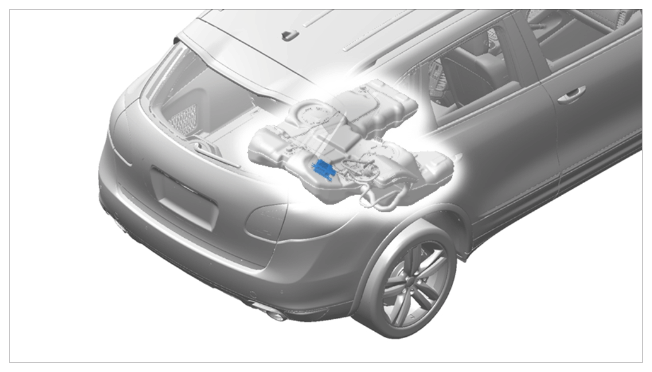

Installation position of control unit for fuel pump

Release electric plug connection -1- (-a- ) and pull it off -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

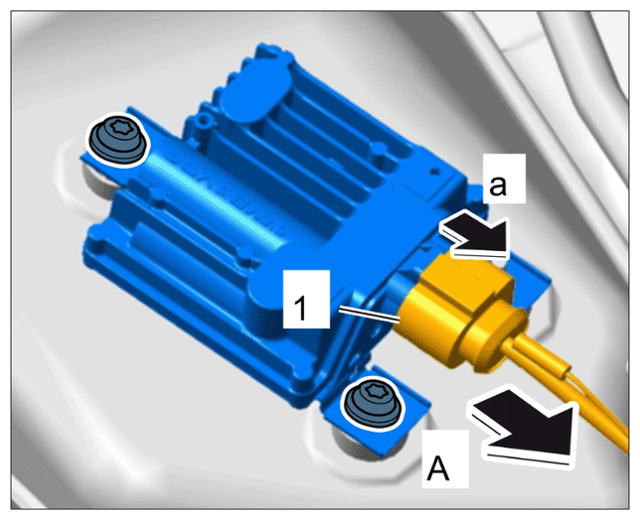

Connector on control unit for fuel pump
Unscrew two fastening nuts -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

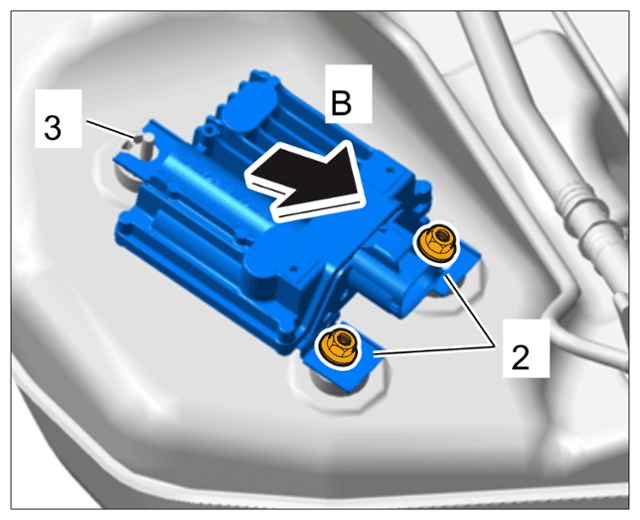

Removing control unit for fuel pump
Remove control unit for fuel pump from the bracket -3- (-B- ).
