Installing Sucking Jet Pump

  1. Slide the sucking jet pump into the fuel tank through the opening in the left connection unit.
  2. Position the sucking jet pump -1-  in the fuel tank and clip it into the holder -2-  .

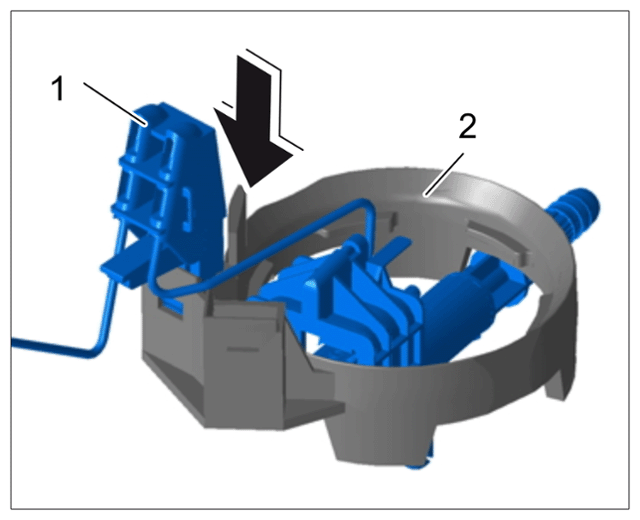

    G16310139Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clipping in sucking jet pump

  3. Connect the sucking jet pump connections -1 and 2-  at the fuel pump. These must lock with an audible click.

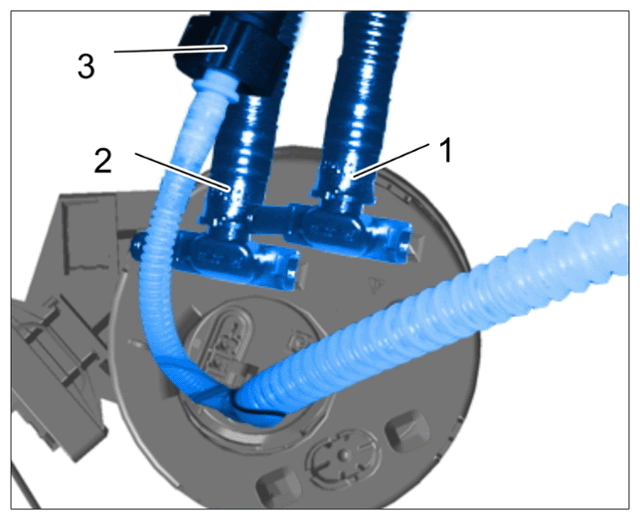

    G16310140Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connecting sucking jet pump connections

  4. Connect the connection -3-  until it engages securely.
