Subsequent Work

Information

If the fuel level sender is replaced, the sender must be calibrated following replacement.

1. Close the tank. To do this, fit the sheetmetal ring on the left and right connection unit and tighten using special tool > T10202 - wrench. > Cap  > Tightening torque 145 (107 ftlb.) Nm +/- 5 (3.5 ftlb.) Nm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cap

2. Fit all connections for the right connection unit (fuel lines, ventilation tubes and electric connectors).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

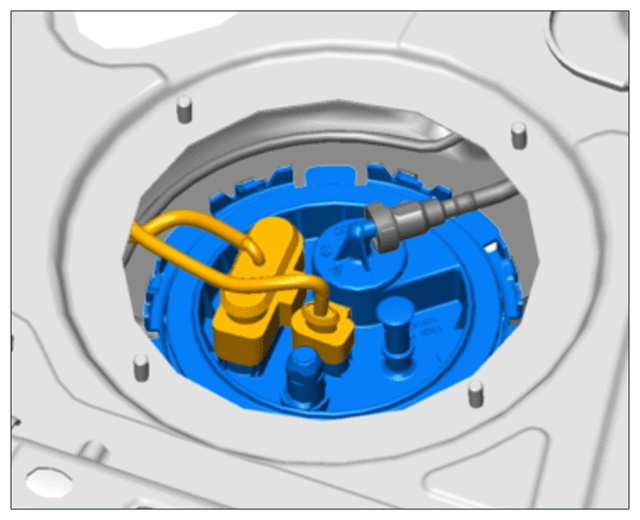

   Fuel supply and connection points at right connection unit

3. Plug in electric plug connection for the left connection unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

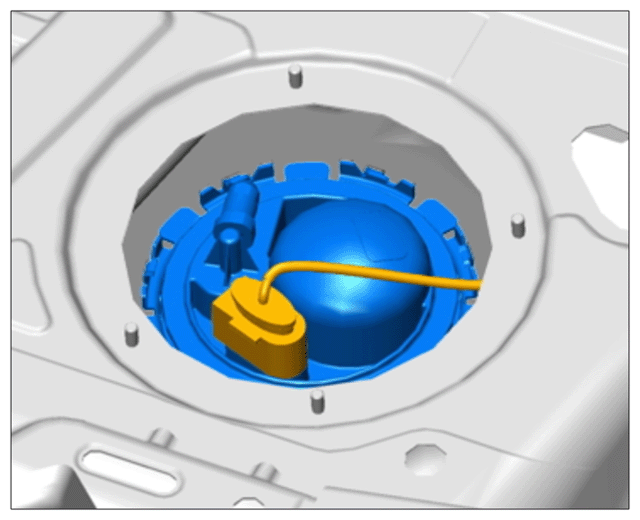

   Connector for left connection unit

4. Fit left and right lid. Then tighten the four fastening nuts on each to > Tightening torque 10 (7.5 ftlb.) Nm  . Refit carpeted floor and fix in place with double-sided adhesive tape.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

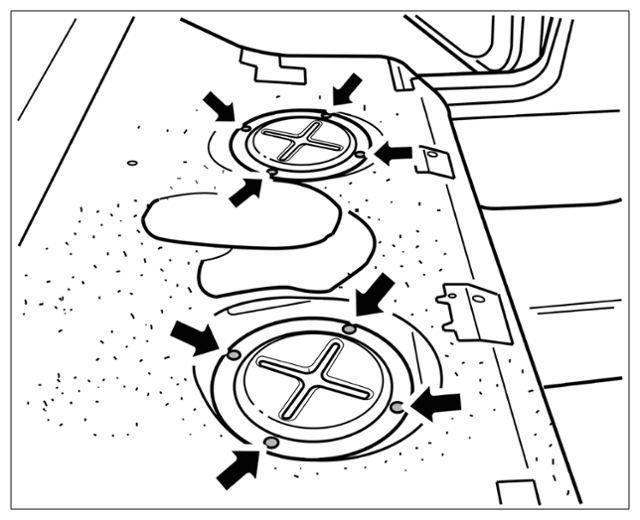

   Fastening nuts on caps

5. Install rear seat.

   > WM 724819 REMOVING AND INSTALLING 2/3-SPLIT FOLDING REAR SEAT (EXCEPT CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0)) "Installing"

6. If the fuel level sender was replaced, the fuel level sender must be calibrated.

   > 2015K2 CALIBRATING FUEL LEVEL SENDER

7. Fill the fuel tank.

   > 200317 Draining and filling fuel -  "FILLING "

8. Close the filler flap.
9. Connect the battery.

   > 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
