Subsequent Work

Replace seals when refitting the flanges. > Seals on flanges

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

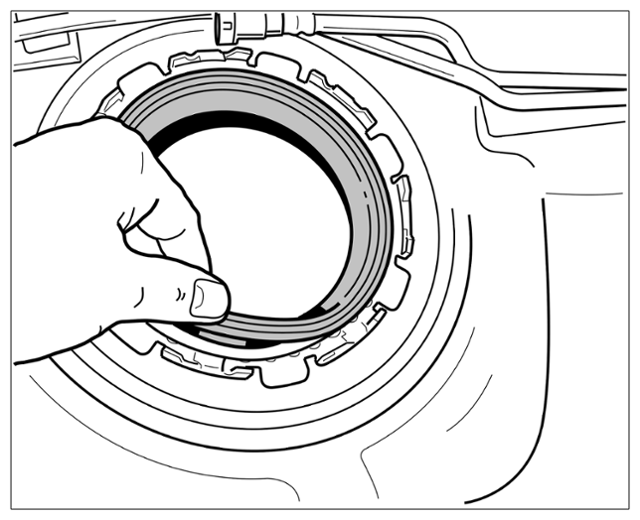

Seals on flanges
Close the fuel tank. To do this, fit the sheetmetal ring on the left and right connection unit and tighten using special tool > T10202 - wrench. > Cap
> Tightening torque 145 (107 ftlb.) Nm +/- 5 (3.5 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

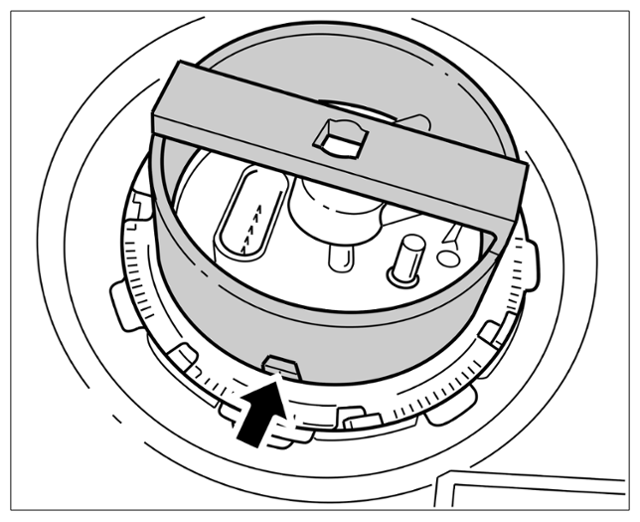

Cap
Fit all connections for the right connection unit (fuel lines, ventilation tubes and electric connectors).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

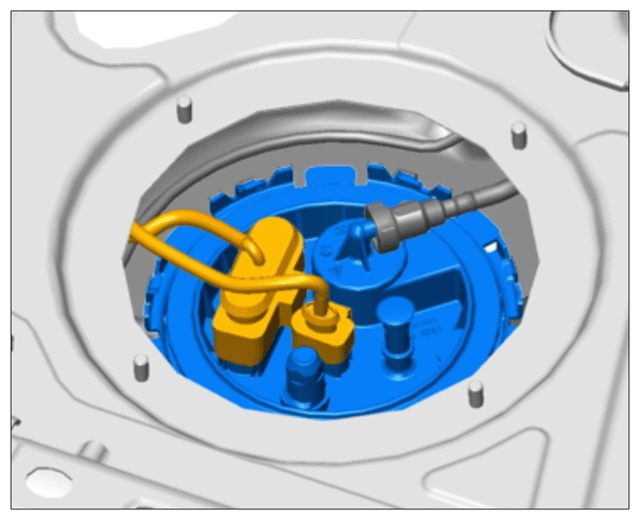

Fuel supply and connection points at right connection unit
Plug in electric plug connection for the left connection unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

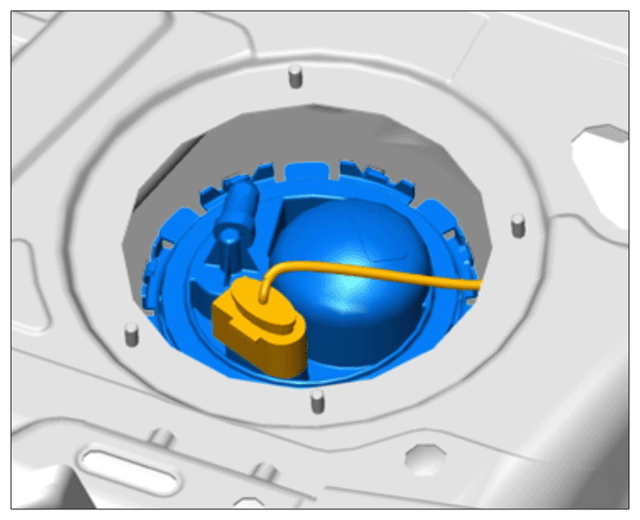

Connector for left connection unit
Fit left and right cap. Then tighten the four fastening nuts. > Fastening nuts for cap > Tightening torque 10 (7.5 ftlb.) Nm
Refit carpeted floor and fix with double-sided adhesive tape.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

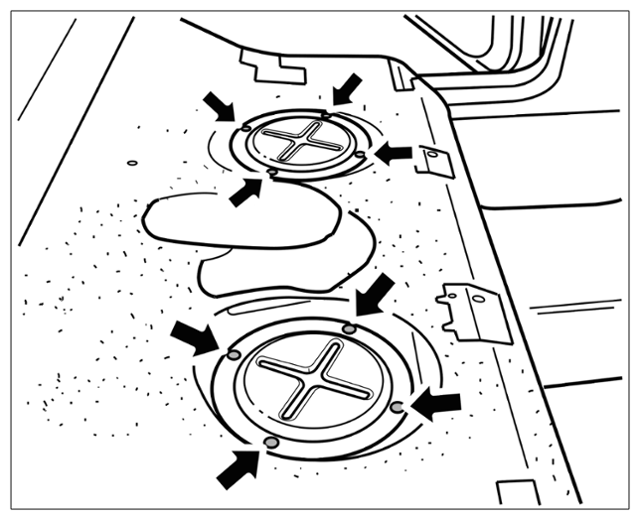

Fastening nuts for cap
Install rear seat.
> WM 724819 REMOVING AND INSTALLING 2/3-SPLIT FOLDING REAR SEAT (EXCEPT CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0)) - "Installing"
