Test Tool Setup
Testing and measuring tools for fuel pressure and fuel delivery rate

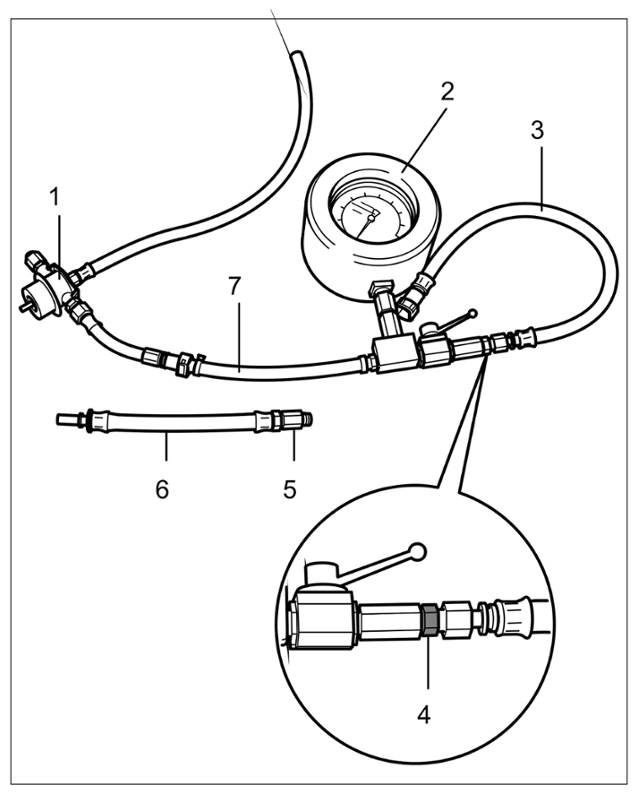

| 1 | > 9705 - Measuring adapter; with rapid-action coupling → used for checking the fuel delivery rate. Generates the required counter-pressure of 2.5 bar. |
| 2 | Pressure gauge with stopcock tester > V.A.G 1318 - K-Jetronic Tester |
| 3 | Connecting line > 9705/3 - connection line ("female" rapid-action coupling) |
| 4 | Adapter 1318/7 from > V.A.G 1318 - K-Jetronic Tester |
| 5 | Adapter 1318/15 (one-piece connecting piece); accessory for > V.A.G 1318 - K-Jetronic Tester; → used for checking the fuel delivery pressure. |
| 6 | Connecting line > 9705/3 - connection line ("male" rapid-action coupling) → used for checking the fuel delivery pressure. |
| 7 | Adapter 1318/17 (A) from > V.A.G 1318 - K-Jetronic Tester; connection to > 9705 - Measuring adapter → used for checking the fuel delivery rate. |
