Preliminary Work

1. Disconnect the battery.

   > 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY

2. Open the filler flap.
3. Drain the fuel tank if necessary.

   > 200317 Draining and filling fuel -  "DRAINING "

4. Remove rear seat.

   > WM 724819 REMOVING AND INSTALLING 1/3-SPLIT FOLDING REAR SEAT (EXCEPT CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))

   > WM 724819 REMOVING AND INSTALLING 2/3-SPLIT FOLDING REAR SEAT (EXCEPT CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))

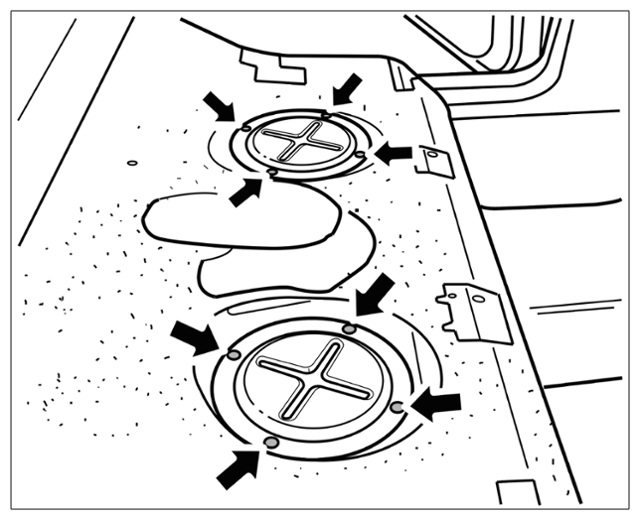

5. Loosen the left and right cap -arrows-  . To do this, remove the carpeted floor. Then loosen the four fastening nuts and remove the cap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts for cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

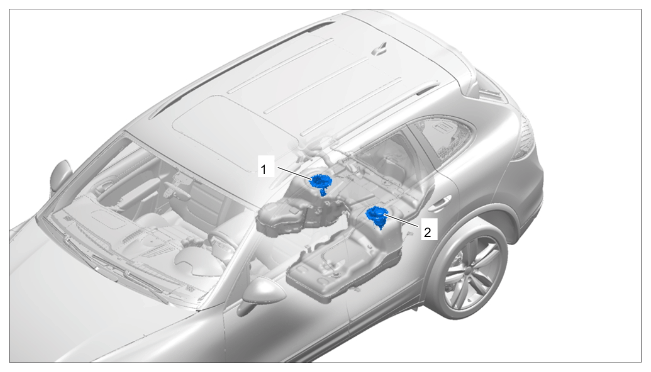

   Left and right connection units

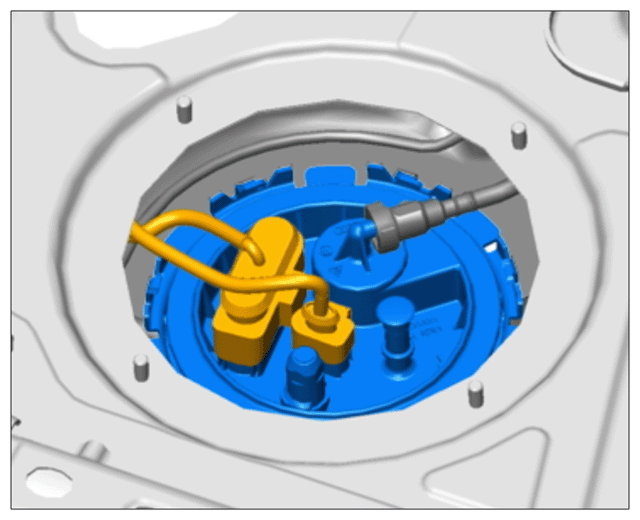

6. Disconnect all connections on the right connection unit. Pull off electric plug connections.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel supply and connection points at right connection unit

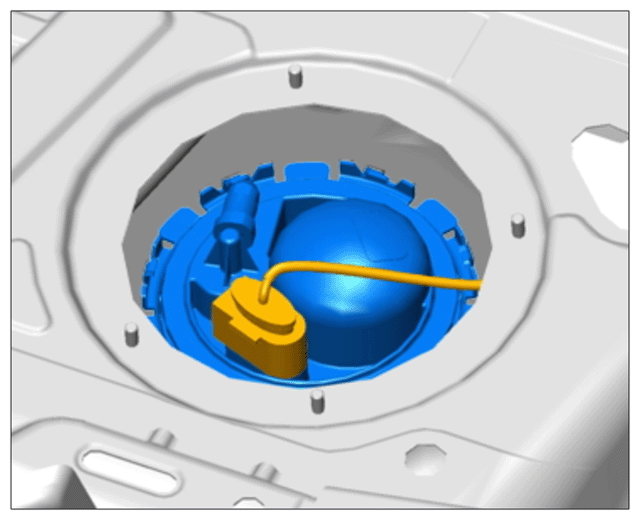

7. Disconnect electric plug connection on the left connection unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connector for left connection unit

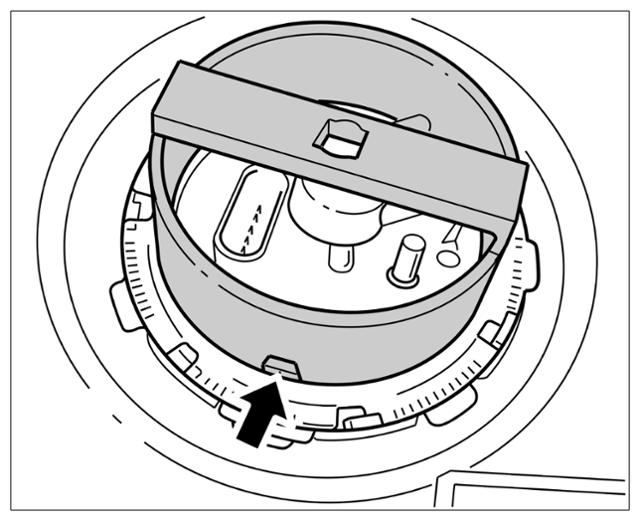

8. Open the left and right lock using > T10202 - wrench and lift up the connection unit. > Special tool on cap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Special tool on cap
