Tools For Checking Fuel Pressure And Fuel Delivery Rate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

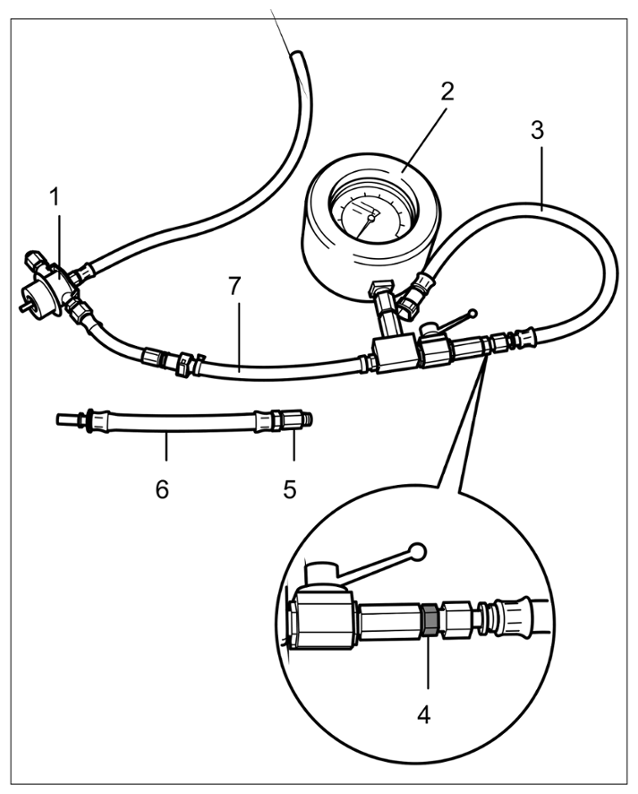

Testing and measuring tools for fuel pressure and fuel delivery rate

1	> 9705 - Measuring adapter; with rapid-action coupling → used for checking the fuel delivery rate. Generates the required counter-pressure of 2.5 bar.
2	Pressure gauge with stopcock tester > V.A.G 1318 - K-Jetronic Tester
3	Connecting line > 9705/3 - connection line ("female" rapid-action coupling)
4	Adapter 1318/7 from > V.A.G 1318 - K-Jetronic Tester
5	Adapter 1318/15 (one-piece connecting piece); accessory for > V.A.G 1318 - K-Jetronic Tester; → used for checking the fuel delivery pressure.
6	Connecting line > 9705/3 - connection line ("male" rapid-action coupling) → used for checking the fuel delivery pressure.
7	Adapter 1318/17 (A) from > V.A.G 1318 - K-Jetronic Tester; connection to > 9705 - Measuring adapter → used for checking the fuel delivery rate.
