Subsequent Work

  1. Disconnect tool and reconnect vehicle connections. Absorb and wipe off residual fuel with a cloth.
  2. Fit the fuel supply line -arrow-  at the right connection unit.

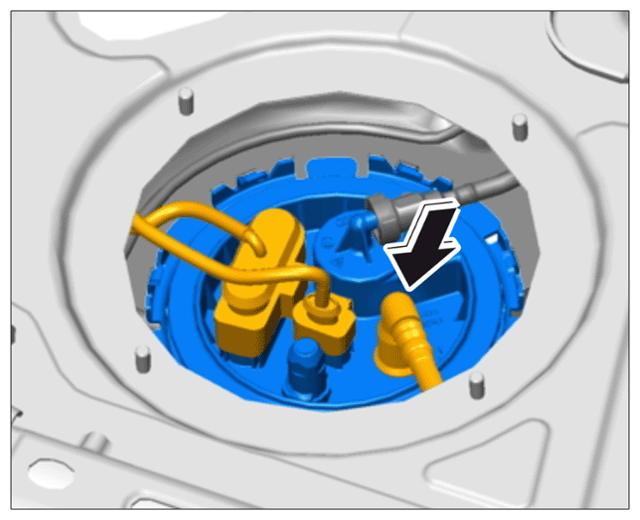

    G16310023Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel supply and connection points at right connection unit

  3. Fit the right cap (figure shows both caps). Then tighten the four fastening nuts. > Tightening torque 10 (7.5 ftlb.) Nm  Refit the carpeted floor and fix in place with double-sided adhesive tape.

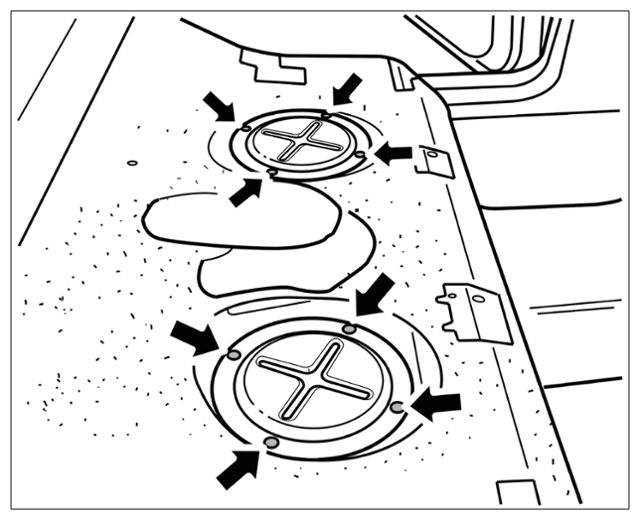

    G16310024Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts on caps

  4. Install rear seat.

    > WM 724819 REMOVING AND INSTALLING 2/3-SPLIT FOLDING REAR SEAT (EXCEPT CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0)) - "Installing"

  5. Air the vehicle with the windows open.
