Home >> Porsche >> 2012 >> Cayenne Base, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> 96 - Lights, Lamps, Switches, Interior -- 92A Cayenne >> WM 964019 Removing And Installing Luggage Compartment Lamp (Cayenne, Cayenne GTS, Cayenne Turbo S, Cayenne S, Cayenne S Hybrid, Cayenne Turbo, Cayenne S Diesel, Cayenne (3.0)) >> Removing Luggage Compartment Lamp

Removing Luggage Compartment Lamp

  1. Switch off ignition and remove ignition key.
  2. Use a plastic spatula or screwdriver to lever out the luggage compartment lamp -1-  (-arrow-  ).
  3. Unplug electric plug connection -2-  .

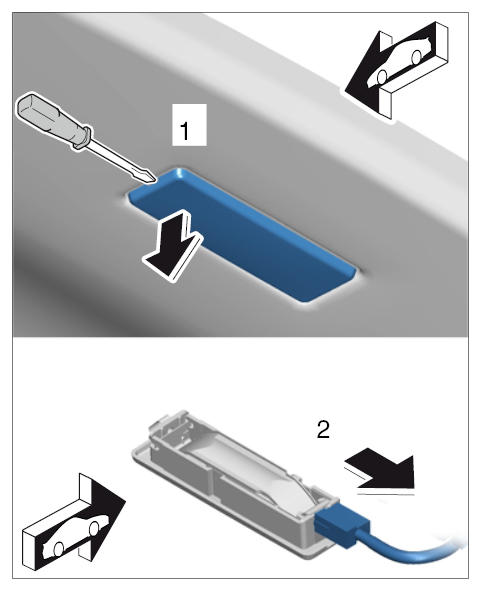

    Fig 1: Removing Luggage Compartment Lamp
    G09941974Courtesy of PORSCHE CARS NORTH AMERICA, INC.
