Home >> Porsche >> 2012 >> Cayenne Base, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> 96 - Lights, Lamps, Switches, Interior -- 92A Cayenne >> WM 961519 Removing And Installing FOOTWELL Light (Cayenne, Cayenne GTS, Cayenne Turbo S, Cayenne S, Cayenne S Hybrid, Cayenne Turbo, Cayenne S Diesel, Cayenne (3.0)) >> Removing Bulb

Removing Bulb

  1. Carefully pry off lens -1-  using a plastic wedge and remove it from the housing -2-  .
  2. Press bulb -3-  out of the lens holder using a small screwdriver -a-  .

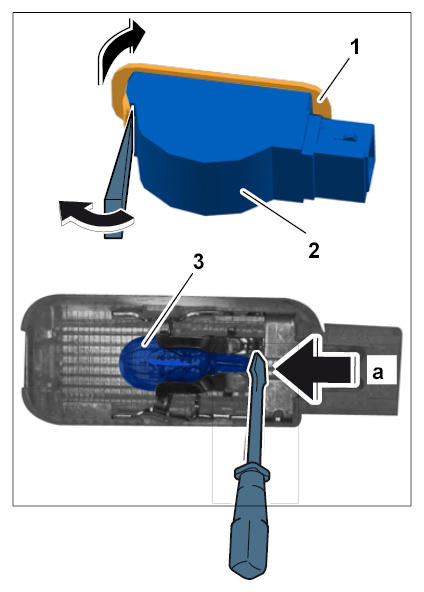

    Fig 1: Removing Bulb
    G09941944Courtesy of PORSCHE CARS NORTH AMERICA, INC.
