Removing And Installing Front-Axle Cross Member: Removing

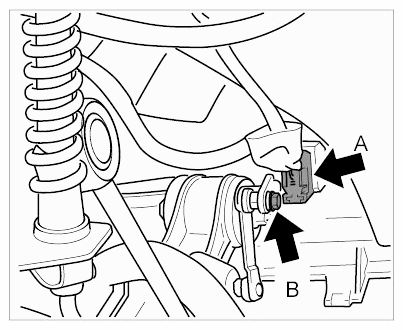

Pull connector -A- from sensor for HBA and loosen threaded joint -B- on control lever.

Fig 1: Locating HBA Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

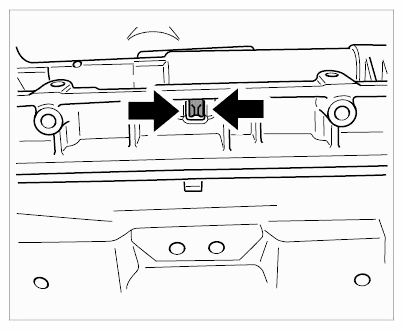

Loosen support for coolant pipes (screwed on 4x) and press together the support for coolant pipes in the centre -arrows and unclip.

Fig 2: Supporting For Coolant Pipes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

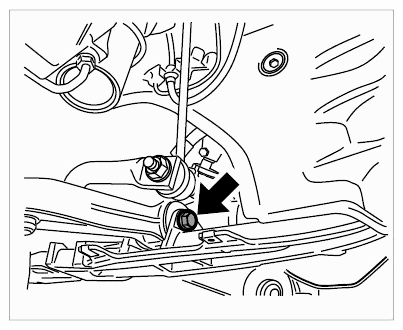

Loosen anti-roll-bar mount -arrows- and allow anti-roll bar to hang.

Fig 3: Locating Front Anti-Roll-Bar Mounting Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen trailing arm on front-axle cross member -arrow - and pull out of the mount.

Fig 4: Locating Trailing Arm Mounting Bolts For Axle Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove screw -arrow- from universal joint (steering column). Carefully push steering column upward until the universal joint loosens from the steering gear.

Fig 5: Locating Universal Joint Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

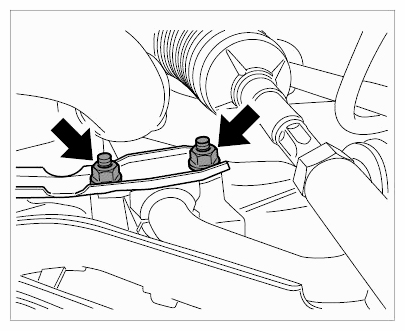

Remove the steering mount (2 M10 screws on front-axle cross member).
Remove diagonal braces (2 screws -1 + 2- and 2 M12 nuts on front-axle cross member).
Remove protective plate (cover under tank). To do so, loosen the screw from the right and left tank restraining strap.

Remove the mounts -3 to 10- and carefully lower the front-axle cross member (two workers required!).

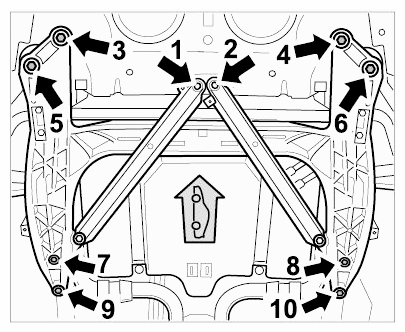

Fig 6: Locating Front-Axle Cross Member With Diagonal Brace To Body
