Preparing Connection Areas Of Body For Installing Seat Cross Member

  1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

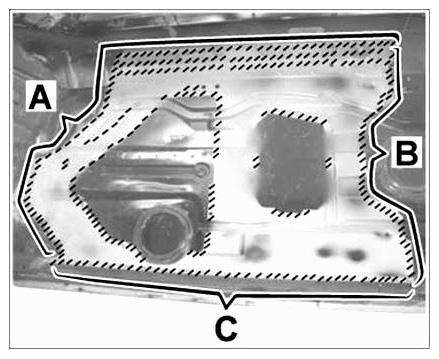

    Fig 1: Identifying Body Seat Cross Member Connection Areas (A, B And C)
    G09589065Courtesy of PORSCHE CARS NORTH AMERICA, INC.
