Removing Front Connecting Link (Suspension/Stabilizer)

  1. Remove wheel. → REMOVING WHEEL Then loosen the lock nuts -arrows-  on the suspension/stabiliser. When loosening, counter with Torx T30 or open-ended wrench.

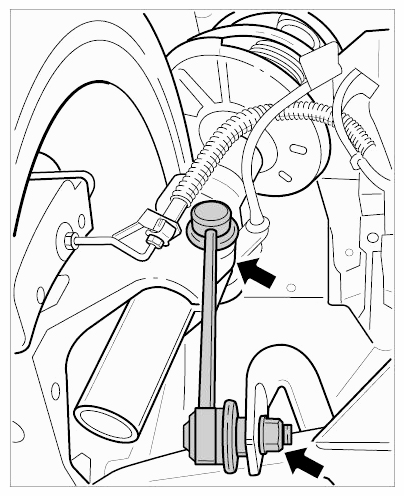

    Fig 1: Locating Connecting Link Nuts (Suspension/Stabilizer)
    G09587516Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Support wheel suspension on wheel carrier with suitable jack, and remove suspension/stabilizer.
