Removing Rear Speed Sensor

  1. Raise the vehicle → LIFTING THE VEHICLE .
  2. Open combination plug connection -1-  and pull out connector for the speed sensor.

    Loosen fastening screw -2-  and remove the speed sensor.

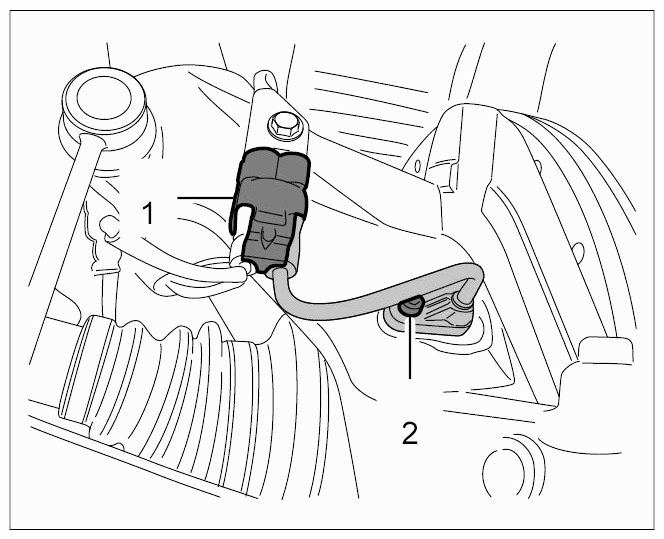

    Fig 1: Identifying Rear Speed Sensor
    G09587740Courtesy of PORSCHE CARS NORTH AMERICA, INC.
