Driver's Side

Information

This is a two-stage airbag module which must be ignited separately.

• Remove trim panel for steering column.  → REMOVING TRIM PANEL ON STEERING COLUMN SWITCH .

1. Disconnect plug from the airbag at the steering column switch and first insert the plug with marking A  (1st stage) of adapter cable No. 9257/4.

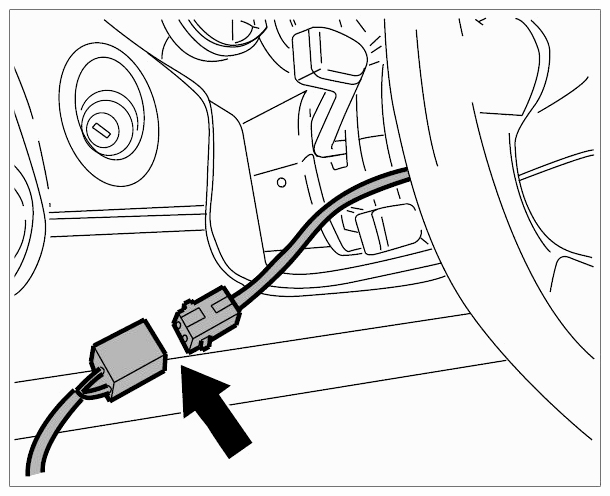

   Fig 1: Disconnecting Plug From Airbag At Steering Column Switch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Connect ignition device No. 9257 to the 2-pin plug E  of adapter cable No. 9257/4.
3. Place the ignition device in front of the vehicle through the door gap.
4. After triggering, repeat the work step with the plug with the marking B  (2nd stage).
