Removing Rear Spoiler

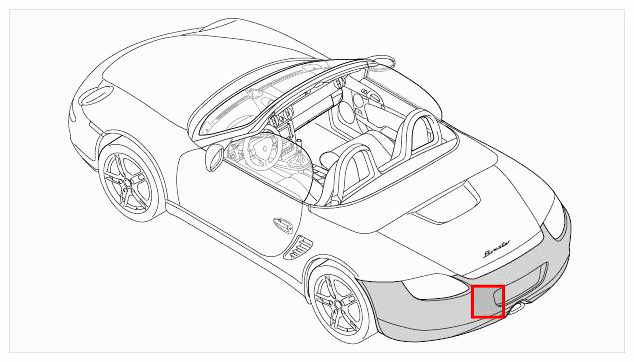

Fig 1: Identifying Rear Apron Installation Position
G09590651Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  at the sides of the rear spoiler -2-  .
  2. Remove retainer plate -3-  .
  3. Unscrew fastening screws -1-  at the top of the rear spoiler -2-  .

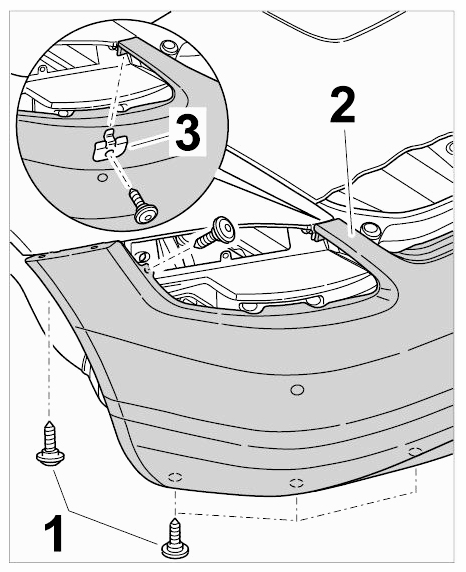

    4. Fig 2: Identifying Rear Spoiler, Retainer Plate And Mounting Screws
    G09590652Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Carefully pull rear apron -2-  to the rear until the plug connection is accessible.

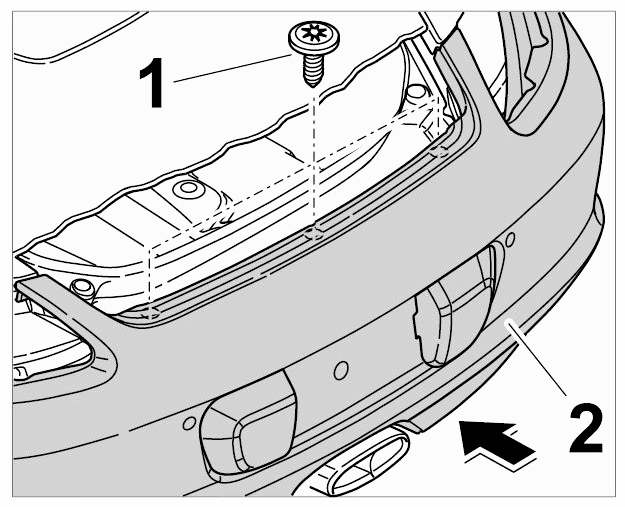

    Fig 3: Loosening Rear Spoiler At Top
    G09590653Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Press lug -arrow-  of the plug connection -4-  and separate.

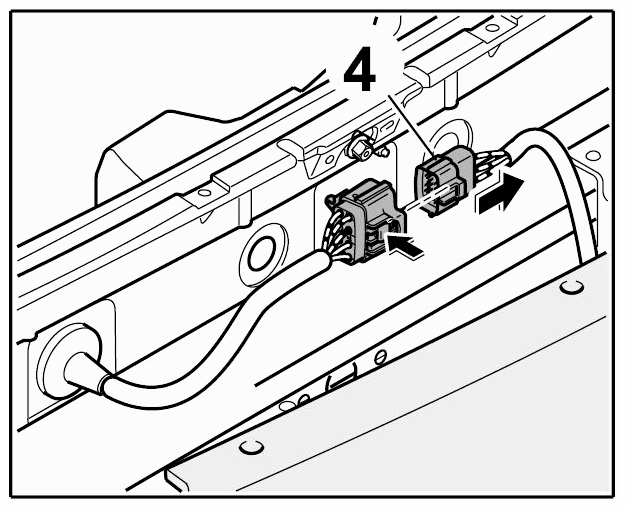

    Fig 4: Disconnecting Rear Apron Plug Connection
    G09590654Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove rear spoiler.
