Gap Dimension Of Tailpipe

  1. Check gap dimensions of tailpipes -1-  to rear apron -2-  , if necessary, adjust tailpipes -1-  .

    Projection from rear spoiler: -Y = 26.2 ± 2 mm-  .

    Distance from rear spoiler: -Z = 27 mm-  .

    Centre distance at the sides evenly to the left and right.

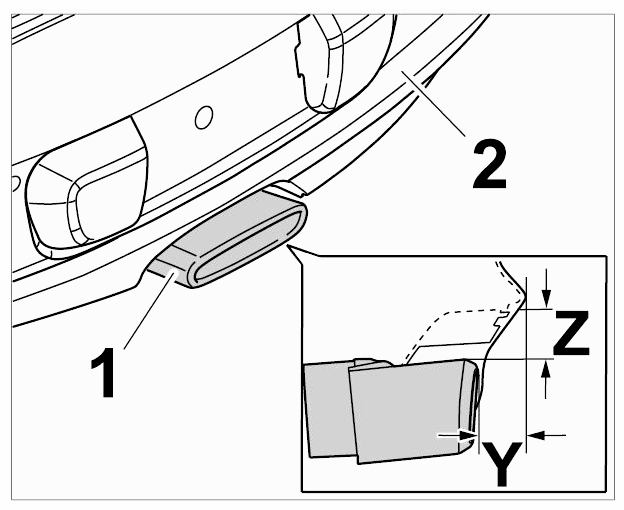

    2. Fig 1: Identifying Tailpipe Gap Dimension
    G09590659Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Check gap dimensions of tailpipes -1-  to rear apron -2-  , if necessary, adjust tailpipes -1-  .

    Projection from rear spoiler: -Y = 26.2 ± 2 mm-  .

    Distance from rear spoiler: -Z = 25 mm-  .

    Centre distance at the sides evenly to the left and right.

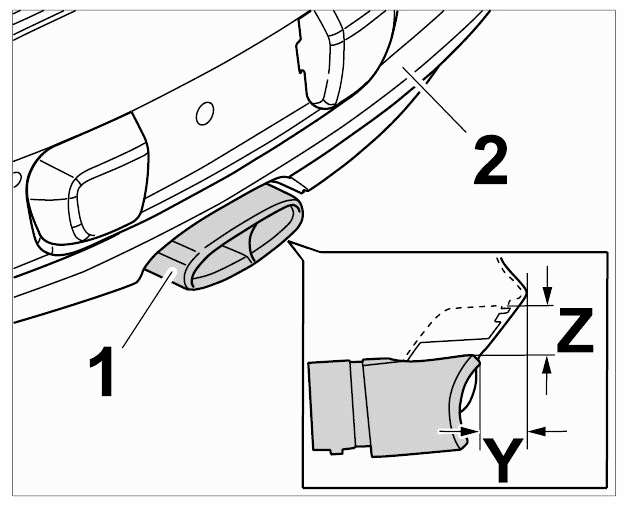

    2. Fig 1: Identifying Tailpipe Gap Dimension
    G09590660Courtesy of PORSCHE CARS NORTH AMERICA, INC.
