Removing Centre Side Member

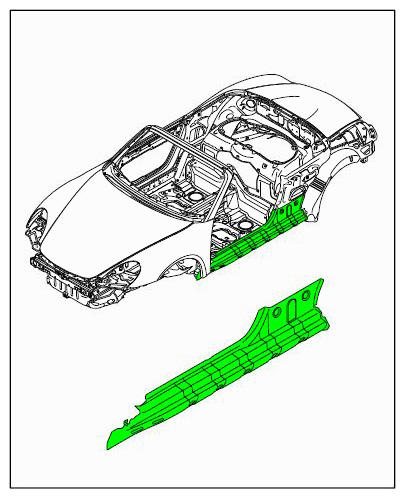

Fig 1: Identifying Installation Position Of Centre Side Member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Separate body parts

• In the case of 3-layer spot-welded panel joints with a hardened bonded layer on the outer panel, drill the outer panel in the area of the spotwelds sufficiently well without damaging the spotweld in the second component layer. After removing the loosened body part, old adhesive must be removed and any uneven spots sanded down. The flange area must then be pre-treated for bonding  .
• For a description of the procedure, see: Information on the use of structural adhesive in vehicle manufacturing →  Information On The Use Of Structural Adhesives In Vehicle Construction

1. Mill off spotwelds
   1. 1.1. Mill off spotwelds in areas A and B  using a spotweld cutter.

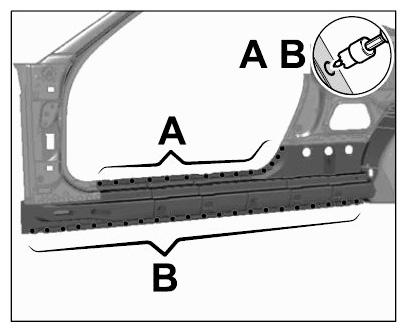

   Fig 2: Identifying Spotwelding Area (A And B)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mill off spotwelds in area C  using a spotweld cutter.

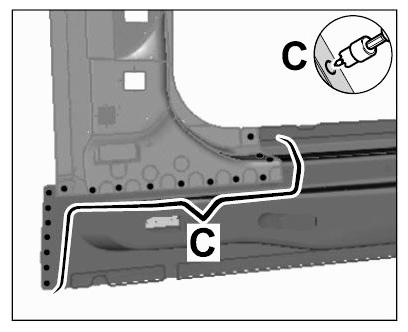

   Fig 3: Identifying Spotwelding Area (C)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mill off spotwelds in area D  using a spotweld cutter.

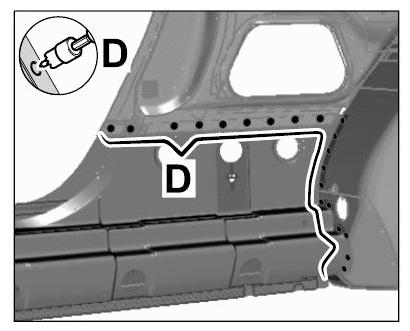

   Fig 4: Identifying Spotwelding Area (D)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
