Installing Outer Side Member

Welding in outer lower side member
1. 1.1. Fix the outer lower side member with tensioning clamps.
2. 1.2. Tack-weld the outer lower side member.
  Information

  Once the spare parts have been fixed in place, repair spotwelds must be placed on the old spotwelds because there is no current flow possible in areas with a hardened adhesive layer. Welding procedures other than resistance spot-welding are not permitted since the thermal effect would destroy the bonded joint.
3. 1.3. Spot-weld areas A, B on the side member.
4. 1.4. Plug-weld the side member in area F using inert gas.

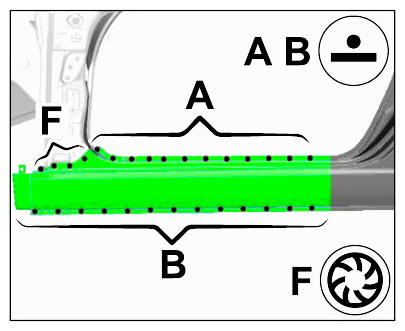

Fig 1: Identifying Side Member Spot-Welding Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding joint using inert gas
1. 2.1. Weld joints D (B-pillar) with a continuous weld using inert gas.

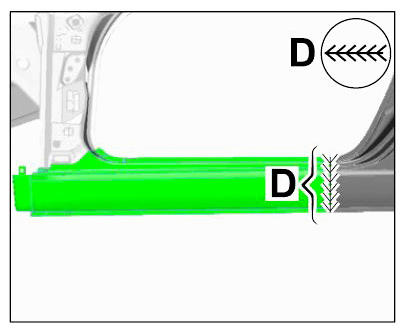

Fig 2: Identifying Welding Joint Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld the web plate using inert gas
1. 3.1. Plug-weld web plate using inert gas in area E .

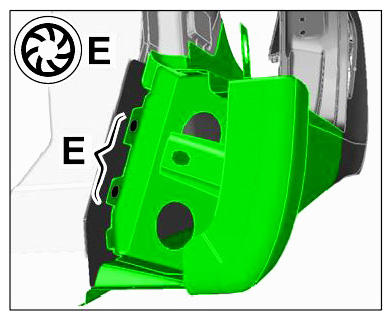

Fig 3: Identifying Web Plate Welding Area (E)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
