Removing Windscreen Frame

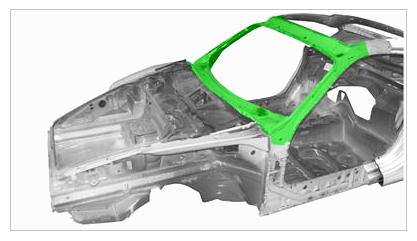

Fig 1: Windscreen Frame Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove hinge pillar reinforcement on the left and right. → Removing Hinge Pillar Reinforcement
Milling off spotwelds
1. 2.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter.

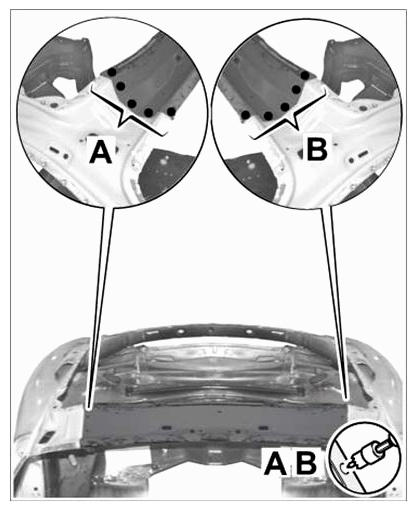

Fig 2: Identifying Milling Off Spotwelds Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cutting spotwelds at the left and right
1. 3.1. Mill off spotwelds at the left and right in areas -A- and -B- using a spotweld cutter.

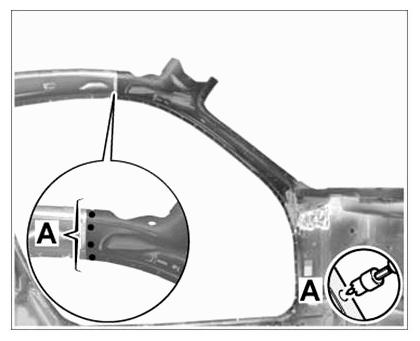

Fig 3: Identifying Milling Off Spotwelds Areas (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 4.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter.

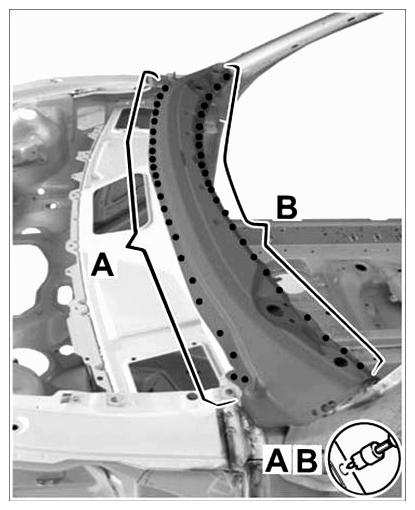

Fig 4: Identifying Milling Off Spotwelds Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separating inert-gas welded seams at the left and right
1. 5.1. Separate inert-gas welded seams at the left and right in areas -A- and -B- using a parting grinder.

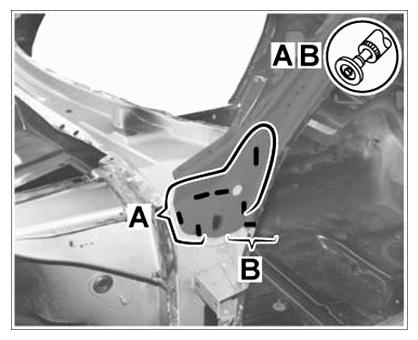

Fig 5: Identifying Inert-Gas Welded Seams Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 6.1. Mill off spotwelds in area -A- using a spotweld cutter.

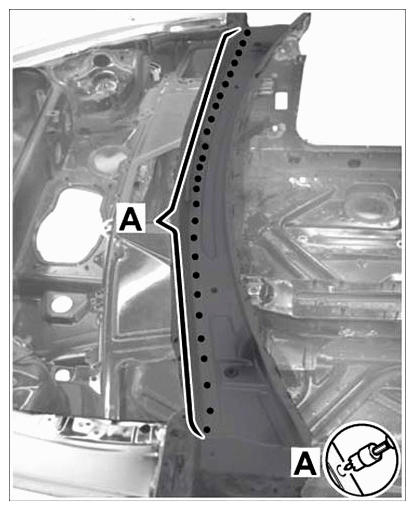

Fig 6: Identifying Milling Off Spotwelds Areas (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cutting spotwelds at the left and right
1. 7.1. Mill off spotwelds at the left and right in areas -A- and -B- using a spotweld cutter.

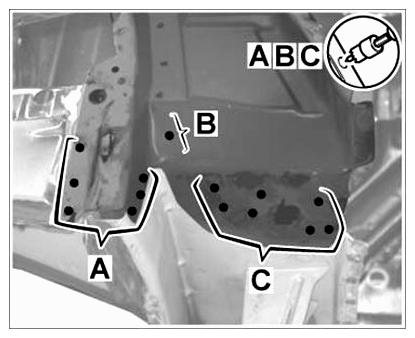

Fig 7: Identifying Spotwelds Cutting Areas (A, B And C)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separating inert-gas welded seams at the left and right
1. 8.1. Separate inert-gas welded seams at the left and right in area -A- using a parting grinder.

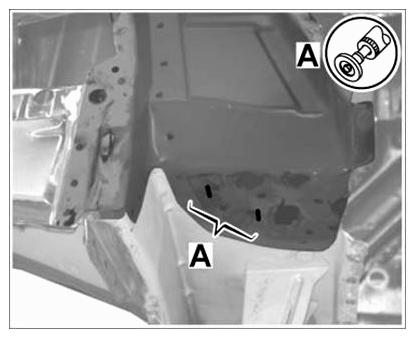

Fig 8: Identifying Inert-Gas Welded Seams Areas (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
