Installing Rear Cross Member

Fitting rear cross member to the body

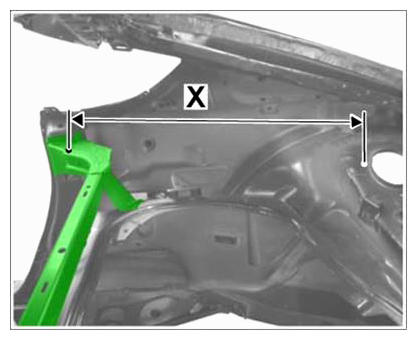

1. 1.1. Fit rear cross member on the body and use a beam compass to adjust to the dimension -X= 620 mm +/- 1 mm- on the right and left.
2. 1.2. Secure the rear cross member with tensioning clamps.
Fig 1: Identifying Rear Cross Member To Body Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in rear cross member

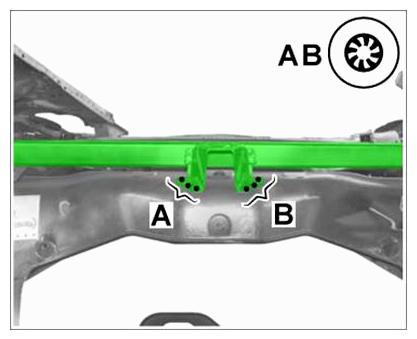

1. 2.1. Plug weld the rear cross member on the left in area -A- and -B- using shielding gas.
Fig 2: Identifying Rear Cross Member Welding Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only with engine removed!
Welding in rear cross member
1. 3.1. Resistance spot-weld the rear cross member on the left in area -A- and -B- .
Fig 3: Identifying Rear Cross Member Welding Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in rear cross member

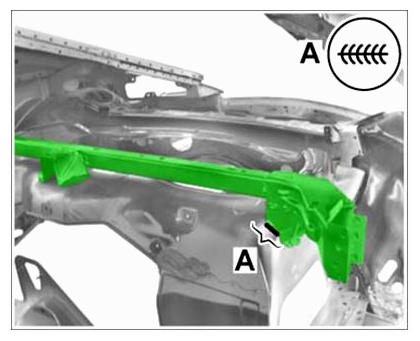

1. 4.1. Apply a full weld to the rear cross member on the left in area -A- using shielding gas.
Fig 4: Identifying Rear Cross Member Welding Areas (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in rear cross member

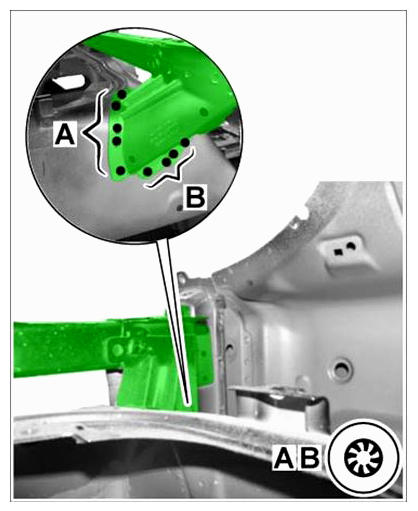

1. 5.1. Plug weld the rear cross member in area -A- and -B- using shielding gas.
Fig 5: Identifying Rear Cross Member Welding Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only with engine removed!
Welding in rear cross member

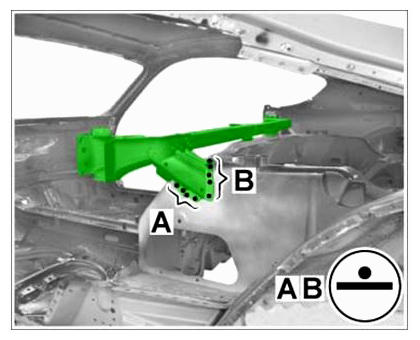

1. 6.1. Resistance spot-weld rear cross member in area -A- and -B- .
Fig 6: Identifying Rear Cross Member Welding Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in rear cross member

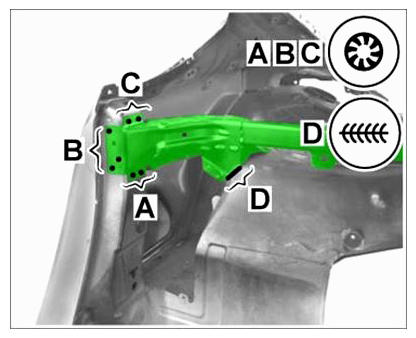

1. 7.1. Plug-weld the rear cross member on the right in the areas -A, B, C- using shielding gas.
2. 7.2. Apply a full weld to the rear cross member on the right in area -D- using shielding gas.
Fig 7: Identifying Rear Cross Member Welding Areas (A, B, C And D)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in rear cross member

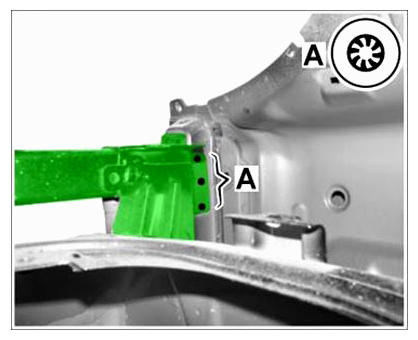

1. 8.1. Plug weld the rear cross member on the right in area -A- using shielding gas.
Fig 8: Identifying Rear Cross Member Welding Areas (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding in rear cross member

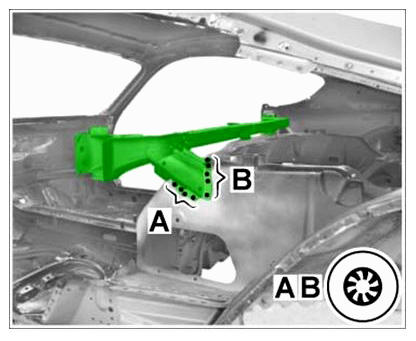

1. 9.1. Plug weld the rear cross member on the right in area -A- and -B- using shielding gas.
Fig 9: Identifying Rear Cross Member Welding Areas (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install B-pillar reinforcement. → Installing B-Pillar Reinforcement
