WM 423819 Removing And Installing Rear-Axle Carrier Side Section (Except CAYMAN Black Edition, CAYMAN S Black Edition, BOXSTER Black Edition, BOXSTER S Black Edition, CAYMAN R): Information: Notes

Information

Pay attention to the following in order to remove the support plate without tension:

Lift the vehicle only at the jacking points provided using a uniformly adjusted platform lift. Align lifting arms evenly (in order to avoid distortion).

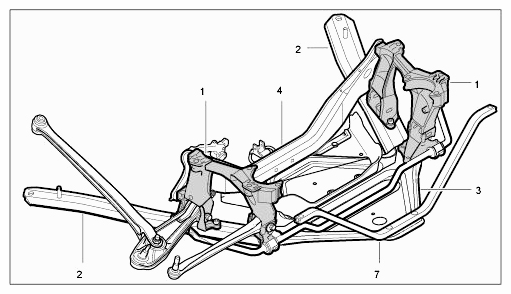

Fig 1: Overview Of Rear-Axle Carrier Side Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Rear-axle carrier side section
2 - Diagonal brace
3 - Support plate
4 - Cross member
7 - V-brace
