Installing Cover For Front Underbody

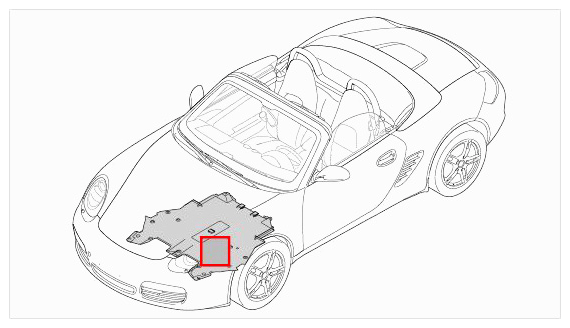

Fig 1: Identifying Installation Position Of Cover For Front Underbody

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When sliding in the underbody cover, make sure the overlap is correct.

1. Insert cover for front underbody -1-  .

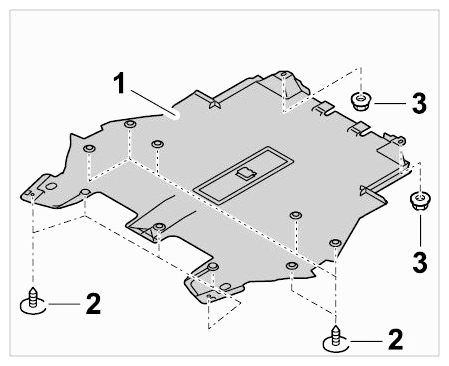

   Fig 2: Identifying Front Underbody And Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tighten fastening screws -2-  Tightening torque → Final tightening: 1.5 ftlb.
3. Tighten fastening nuts -3-  . Tightening torque → Final tightening: 0.5 ftlb.
