Wheel Housing And Rear Side Section

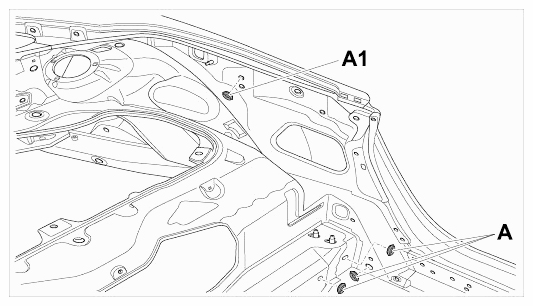

Fig 1: Identifying Wheel Housing And Rear Side Section
G09588123Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rubber grommet hole ø 20 mm
  1. A1 - Rubber grommet hole (Cabriolet only) ø 20 mm
