High-Strength Steel Plates

Information

Body parts of high-strength steel contribute to better protection of the passenger compartment and thus increase protection of the passengers. In addition to improved crash safety, these parts also have a positive influence on fatigue strength. In terms of crash behavior, body parts made from high-strength sheet steel are characterized by their higher energy absorption. But this also means that higher reshaping force must be applied in reshaping work.

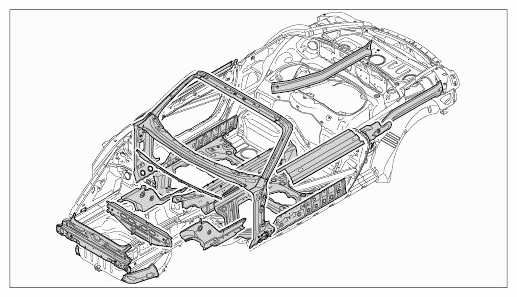

Fig 1: Body High-Strength Steel Plates Structure Identification Materials
G09588107Courtesy of PORSCHE CARS NORTH AMERICA, INC.
