Removing Rear Wheel Housing Liner

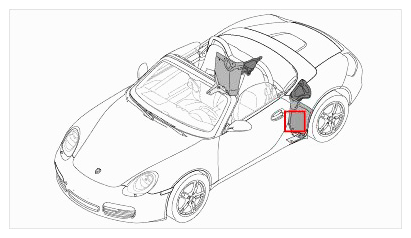

Fig 1: Identifying Rear Wheel Housing Liner Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -1-  and fastening nuts -2-  .
2. Remove wheel housing liner -3-  .

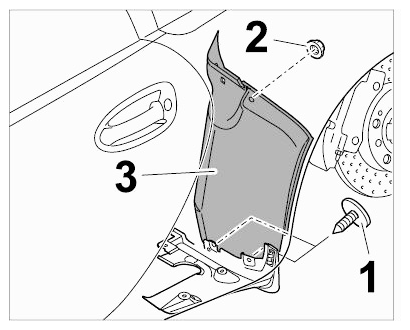

   Fig 2: Removing Rear Wheel Housing Liner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
