Removing Outer Rear Wheel Housing

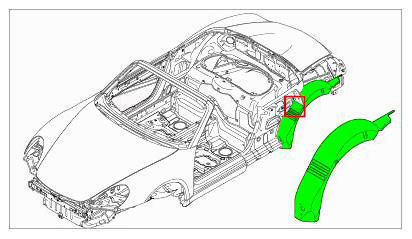

Fig 1: Rear Wheel Housing Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove side panel. → Removing Side Section
Milling off spotwelds
1. 2.1. Mill off spotwelds in area -A- using a spotweld cutter.

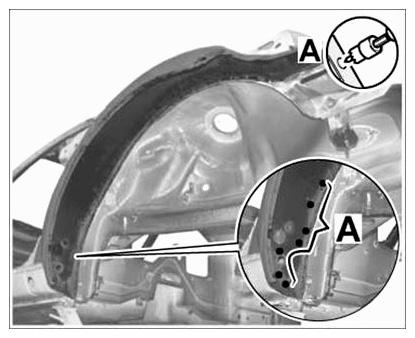

Fig 2: Identifying Spotwelds Area Using Spotweld Cutter (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 3.1. Mill off spotwelds in area -A- using a spotweld cutter.

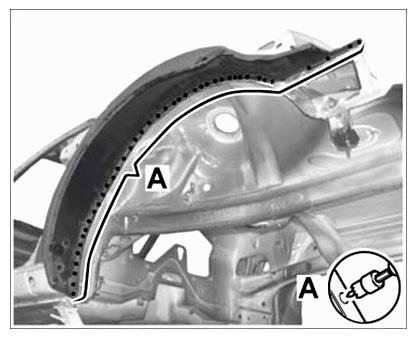

Fig 3: Identifying Spotwelds Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 4.1. Mill off spotwelds in area -A- using a spotweld cutter.

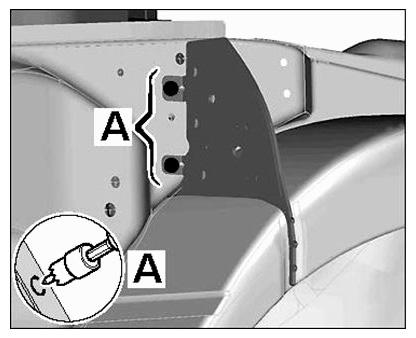

Fig 4: Removing Sealant Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
