Preparing Connection Areas Of The Body For Installing The Side Section

Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C- using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

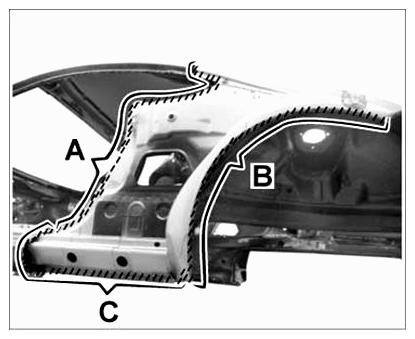

Fig 1: Preparing Body Side Section Connection Areas (A, B And C)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C, D- using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

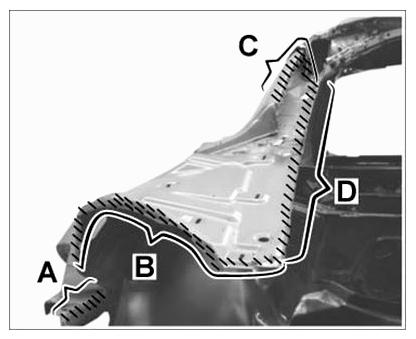

Fig 2: Preparing Body Side Section Connection Areas (A, B, C And D)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coating spot-weld flange areas with zinc powder paint
1. 3.1. Coat all spot-weld flange areas with zinc powder paint.
Preparing bonded flanges
1. 4.1. Prepare bonded flanges in the marked area -A- .
  See: Working with adhesive → Information On The Use Of Structural Adhesives In Vehicle Construction .

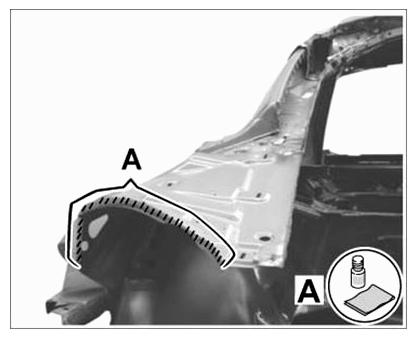

  Fig 3: Preparing Bonded Flanges Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Priming bonded flanges
1. 5.1. Prime bonded flanges on the body in the marked area -A- .
  See Working with primer → Handling Primer

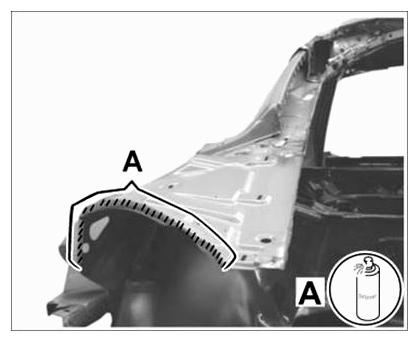

  Fig 4: Identifying Prime Bonded Flanges Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
