Removing Rear Cross Member

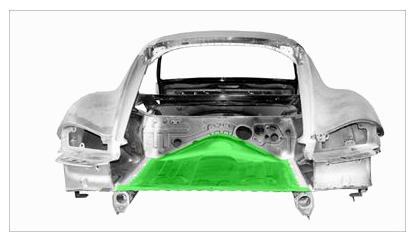

Fig 1: Rear Trunk Floor Panel Component Location
G09589181Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Milling off spotwelds
    1. 1.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.

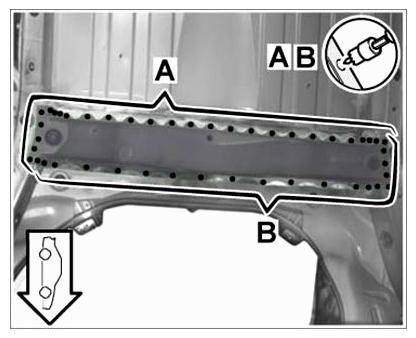

    Fig 2: Identifying Spotwelds Areas (A And B)
    G09589182Courtesy of PORSCHE CARS NORTH AMERICA, INC.
