Removing Horn

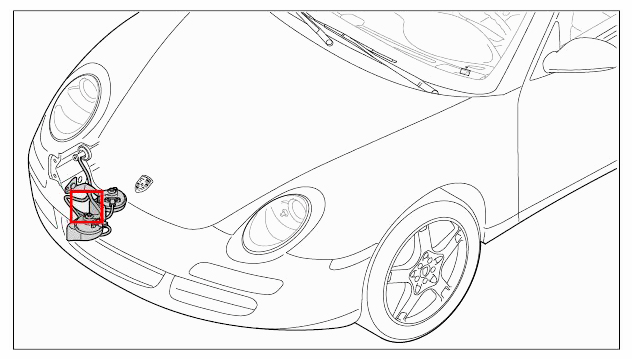

Fig 1: Identifying Horn

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The horn must be removed with the holder.

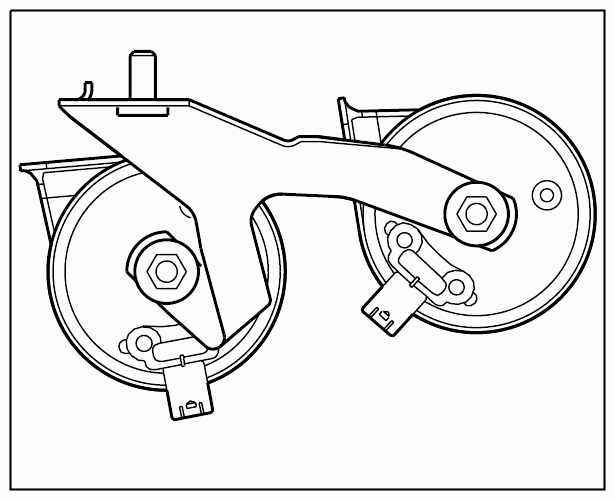

Fig 2: Identifying Horn With Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

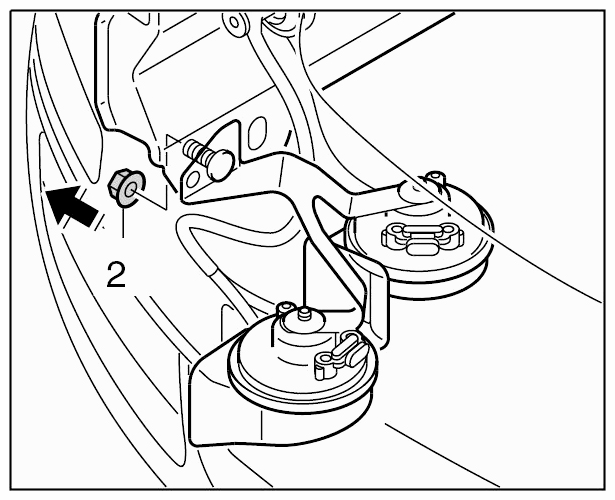

Unscrew the fastening nut -2- and remove the holder with the horns.

Fig 3: Identifying Horn Holder Fastening Nut 2
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

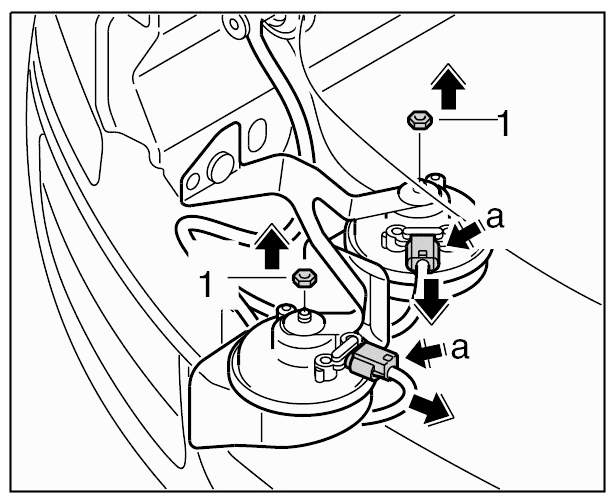

Unlock the electric connector -a- and disconnect from the horns.
Unscrew the fastening nut -1- and remove the horn from the holder.

Fig 4: Unlocking Electric Connector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
