Check Brake Fluid Level

Information

• Observe brake fluid quality. Use only new DOT 4 brake fluid  .
• This brake fluid is available under the following part numbers: Container quantity: 1 litre = 000.043.203.66. 30 litres = 000.043.203.67  .

The brake fluid level in the reservoir must be between the MIN and MAX markings.

• Disengage and remove cover over brake fluid reservoir -B-  . Check brake fluid level.

  -A-  - Viewing window for brake fluid level (MIN marking only)

  -B-  - Cover

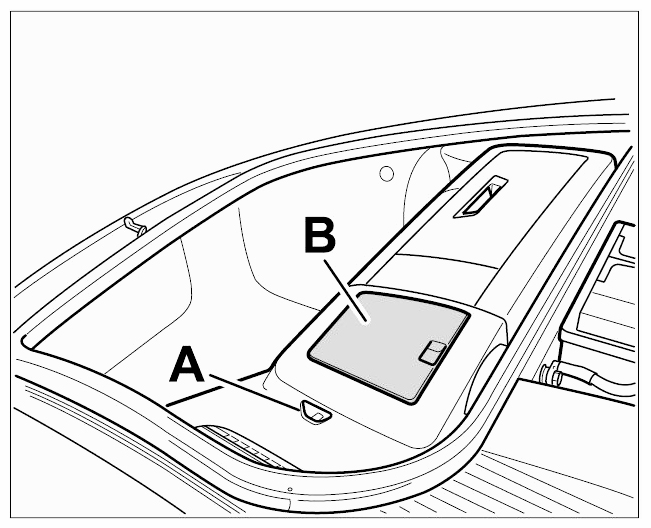

  Fig 1: Identifying Cover Over Brake Fluid Reservoir

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
